Features and Benefits

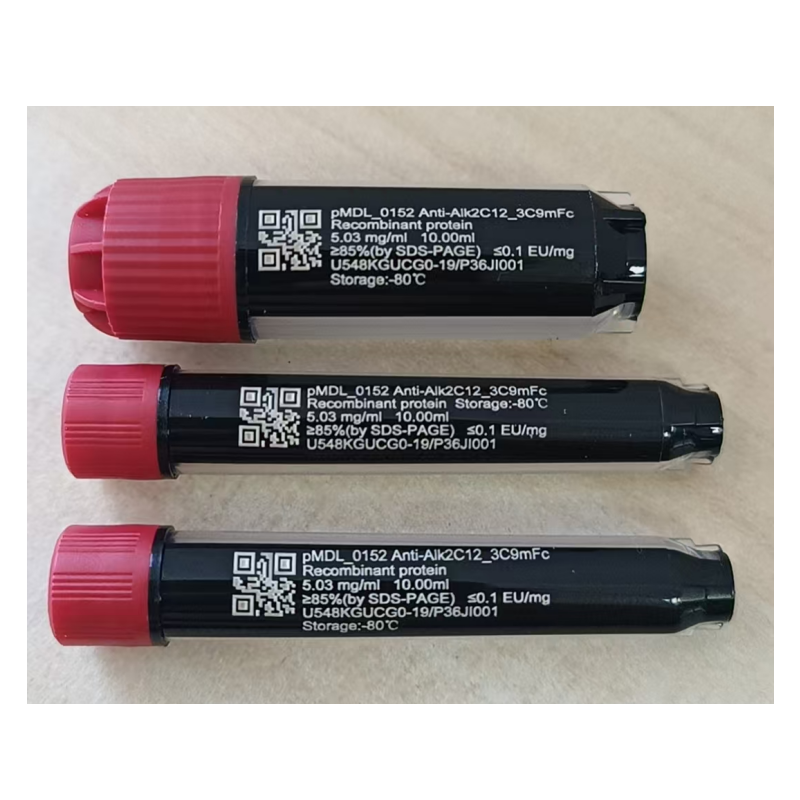

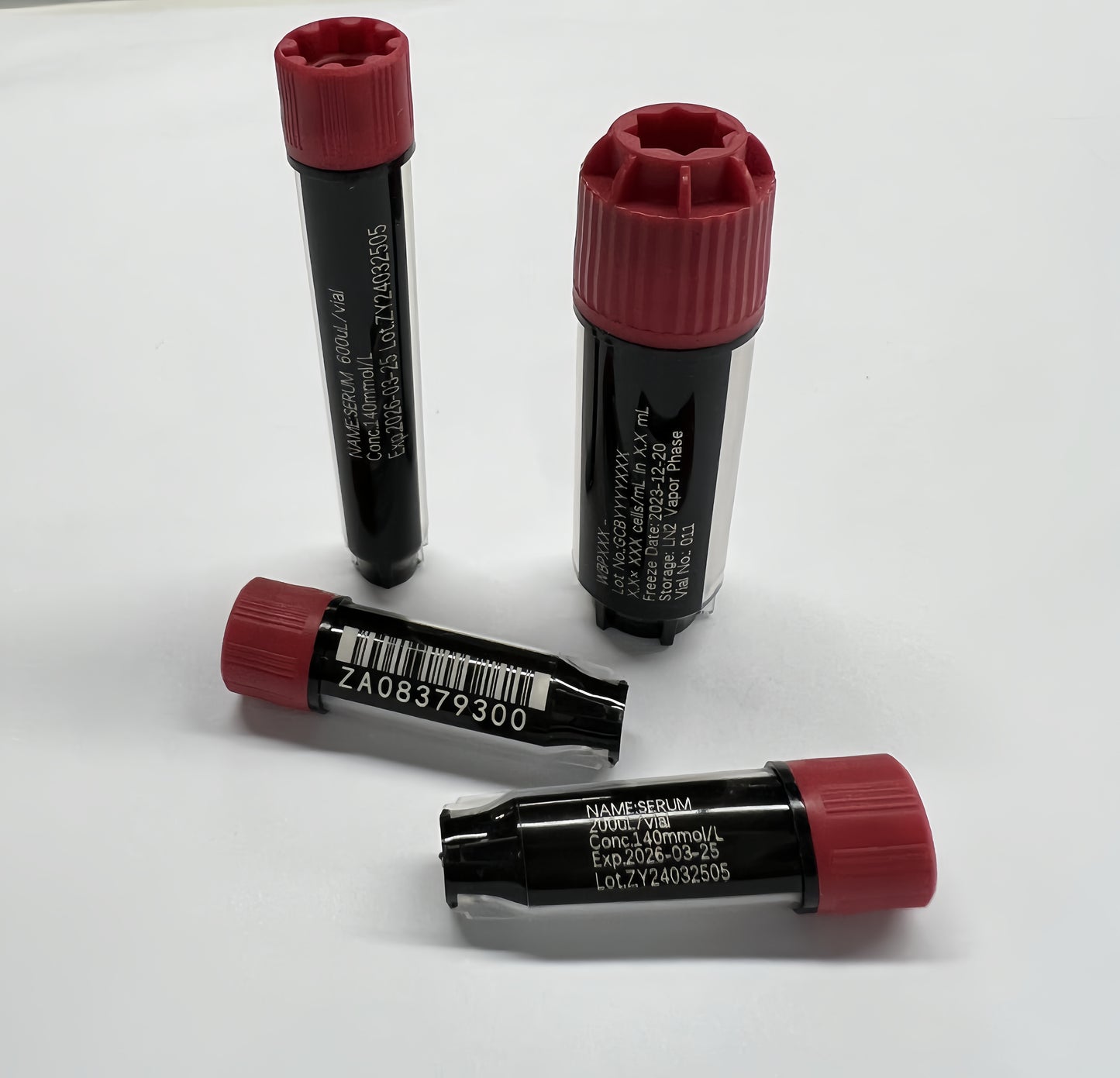

- Laser-etch tri-code sample tubes with a maximum of 1200 tubes per hour, user defined with his own information
- Customize the code using characters, numbers, letters, barcodes, 2D codes, graphics, etc
- Laser-etched code with high contrast and readability，simply recognized with barcode reader
- Open communication interface for integrating into existing software. Data can be imported externally without manual input
- Compatible with the entire suite of Hoefer sample storage tubes
- Simplify the sample handling process by solving issues of paper labels that are prone to contamination, not waterproof, and fall off at low temperatures
Technical Parameters
| Dimension | W×L×H | 570mm×485mm×650mm |
| Unit Weight | 72 kg | |
| Optical Parameters | Marking range | 110mm×110mm |
| Standard marking line width | 0.06mm (depend on the material) | |
| Minimum character height | 0.2mm | |
| Cooling system | Cooling method | forced air cooling |
| Controlling Unit | IPC | I5-6200 main board, 4GMemory, 128G drive, touch screen |
| Operating environment | System power supply | 1.5KW/AC220V/50Hz The voltage fluctuation range is ± 5%. If it exceeds the fluctuation range, a voltage regulator device needs to be equipped. |
| Grounding | Class D [grounding resistance 100 or less] | |
| Ambient temperature | 10~35°C | |
| Ambient humidity | ≤90% | |
| Vibrate | 0.98m/s2 {0.1G} or less, 10~60Hz. During transportation: 4.9 m/s2 {0.5G} or less. |
|
| Dust | Less 0.20mg/m3 | |
| Mist | Not allow | |
| Condensation | Not allow |
Item Listings:
| Cat # | |

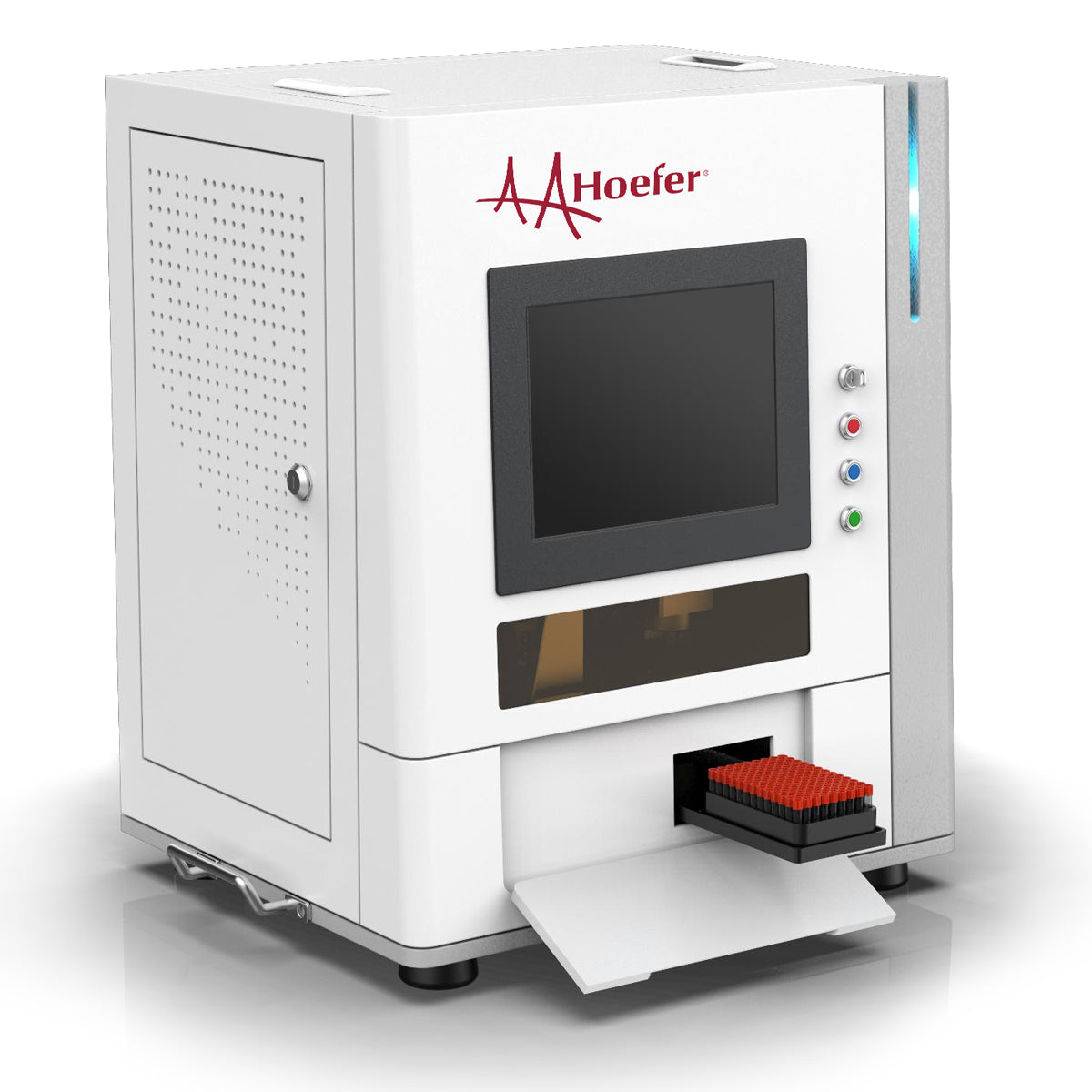

| ST-ATL01 | Single Channel AutoLaser Marking Machine |
| ST-ATL02 | Multi-Channel AutoLaser Marking Machine |
