AutoCap Dispenser
AutoCap Dispenser

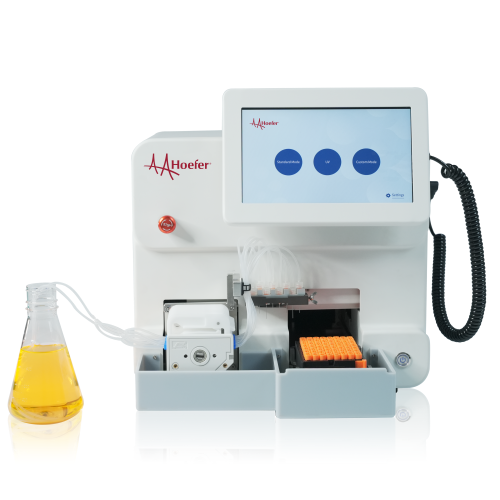

The Hoefer Autocap Dispenser is a fully automated system for precise dispensing of cells, standards, and reagents. Compatible with multiple tube types, it supports 6- and 8-channel decap, recap, and dispensing in one workflow, delivering efficient, safe, and contamination-free laboratory automation.
HOEFER | SKU:
SKU:
Prices shown are for the US market only
ⓘ Pricing Information
In stock
Couldn't load pickup availability
The Hoefer Autocap Dispenser is a fully automated solution designed for the efficient dispensing of cells, reference standards, and reagents. Compatible with a wide variety of sample tube brands and types, it supports 6-channel and 8-channel configurations to simultaneously decap, recap, and dispense with precision. Delivering high efficiency, reliable consistency, enhanced safety, and contamination-free operation, the Hoefer Autocap Dispenser sets a new benchmark for automated laboratory workflows.
Features
• Automated Operation – Easily handles filling of standards, bulk cells, reagents, etc.
• High efficiency – up to 2,000 sample tubes per hour.
• High consistency – dispensing volume error <5%.
• Flexible configuration – 6/8 channels, filling range 50 μL–2 mL.
• High precision – repeat positioning accuracy 0.02 mm.
• Enhanced Safety – Disposable sterile consumables eliminate cross-contamination.
• Minimal Exposure Time – Exposure time is as short as 10 seconds, reducing contamination risks.
• Equipped with UV sterilization lamps for module disinfection.
• Integrated compact cabinet – space-saving, portable, suitable for biosafety cabinet operation.
Specifications
| ST-ACD02 | ST-ACD03 | |
| Parameter | 6-channel model | 8-channel model |
| Filling Volume Range | 100 μL–2 mL | 50 μL–1 mL |
| Maximum Flow Rate | 32 ml/min | |
| Speed Adjustment Resolution | 1 rpm | |
| Error Precision | ≤5% | |
| Dimensions, W×L×H, mm | 400×510×400 | |
| Cap Handling | ||
| Positioning Accuracy | Positioning Adjustment, Positioning Tolerance: ±0.05mm | |
| Specifications | Capping/decapping for 6 tubes | Capping/decapping for 8 tubes |
| Motion Module | ||
| Speed | Max 150 mm/s | |
| Positioning Accuracy | ±0.02 mm | |
| Operating Environment | ||
| Power Supply | 220 VAC, 300 W | |
| System Power | 200 W/AC 220V/50Hz | |
| (Voltage fluctuation range ±5%; requires stabilizer if exceeded) | ||
| Grounding | Class D (Ground resistance ≤100Ω) | |
| Temperature | 10~35℃ | |
| Humidity | ≤90% | |
| Oil Mist | Not allowed | |
| Condensation | Not allowed | |
