Gradient Makers

Gradient Makers

Ideal for generating gradients of polyacrylamide, sucrose and cesiium chloride

Download Manual

HOEFER | SKU:

SG15

$540.00 USD
$540.00 USD
Sale Sold out

Prices shown are for the US market only

ⓘ Pricing Information
All prices displayed on this website are applicable only to customers purchasing within the United States. Prices in other countries may vary due to freight, import duties, taxes, local operating costs, and exchange rates. Please contact your local authorized dealer for pricing in your region.
Item Description

View full details

These gradient makers are ideal for generating gradients of polyacrylamide, sucrose and cesium chloride.

  • Milled of heavy acrylic plastic with high quality, leak-free Teflon® valves
  • Flat base provides stability on magnetic stir. Comes with a support rod for attaching to a ring stand
  • Takes Luer or 4 mm ID tubing. With included adapters, can also take 2 mm ID or 22-gauge tubing.

SG15, SG30, SG50 and SG100 include:

  • Gradient Maker with Teflon Valves
  • Adapter Barbed Fitting
  • Luer Outlet Fitting
  • 22-gauge Needle
  • Support Rod

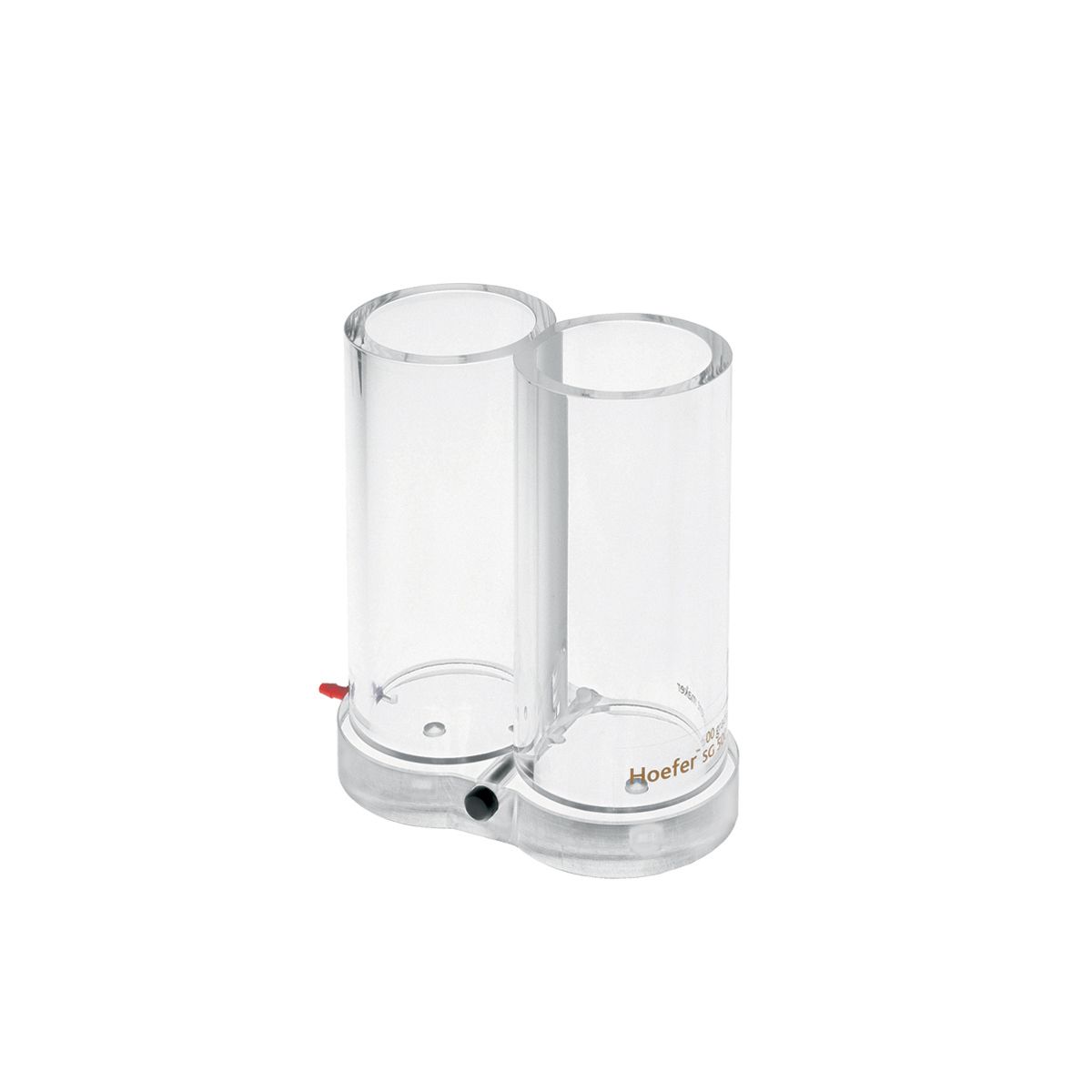

The 500 ml SG500 Gradient Maker is made of two cylindrical acrylic chambers joined and mounted on a flat acrylic base.

  • An easy-to-use push-pull valve opens and closes the passage between the reservoir and mixing chambers
  • Suitable for forming polyacrylamide gradients or buffer gradients used with medium to small chromatography columns
  • Ideal for use with the SE615 Multiple Gel Caster

SG500 includes:

  • Gradient Maker with Push-Pull Valve
  • Hose Clamps (4 pieces)

Ordering information

Cat. # Description Qty.

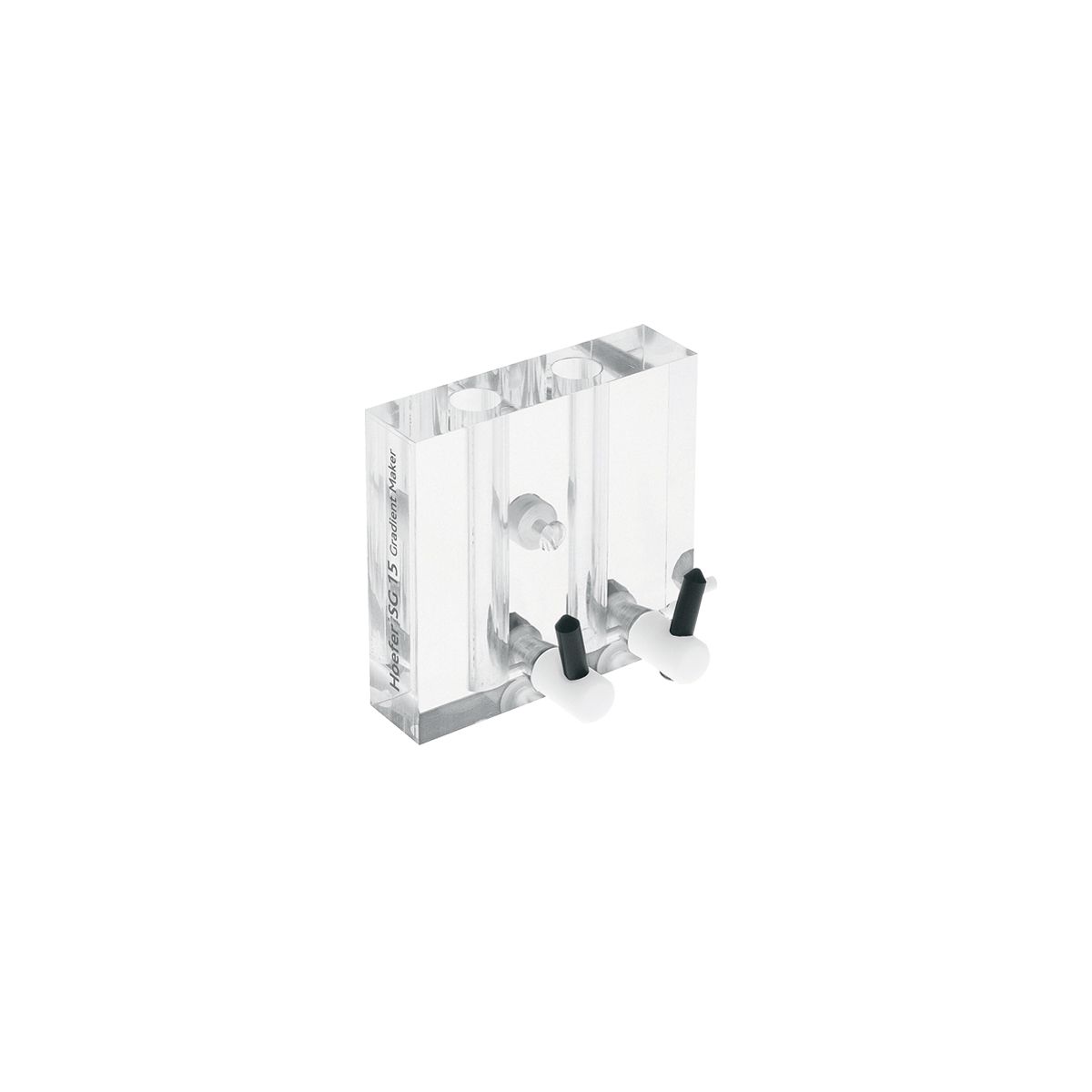

SG15  Gradient maker, 15 ml total volume 1

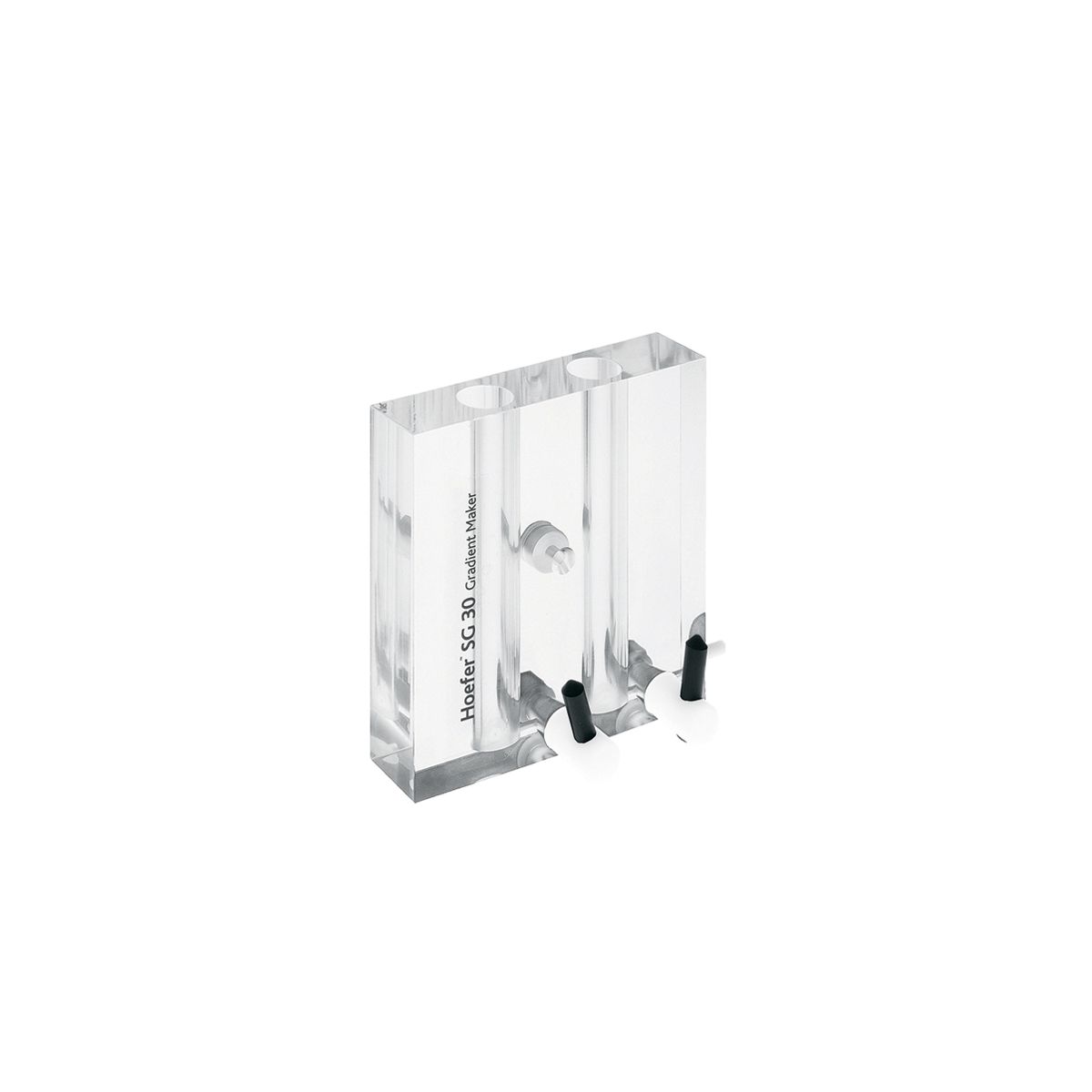

SG30  Gradient maker, 30 ml total volume 1

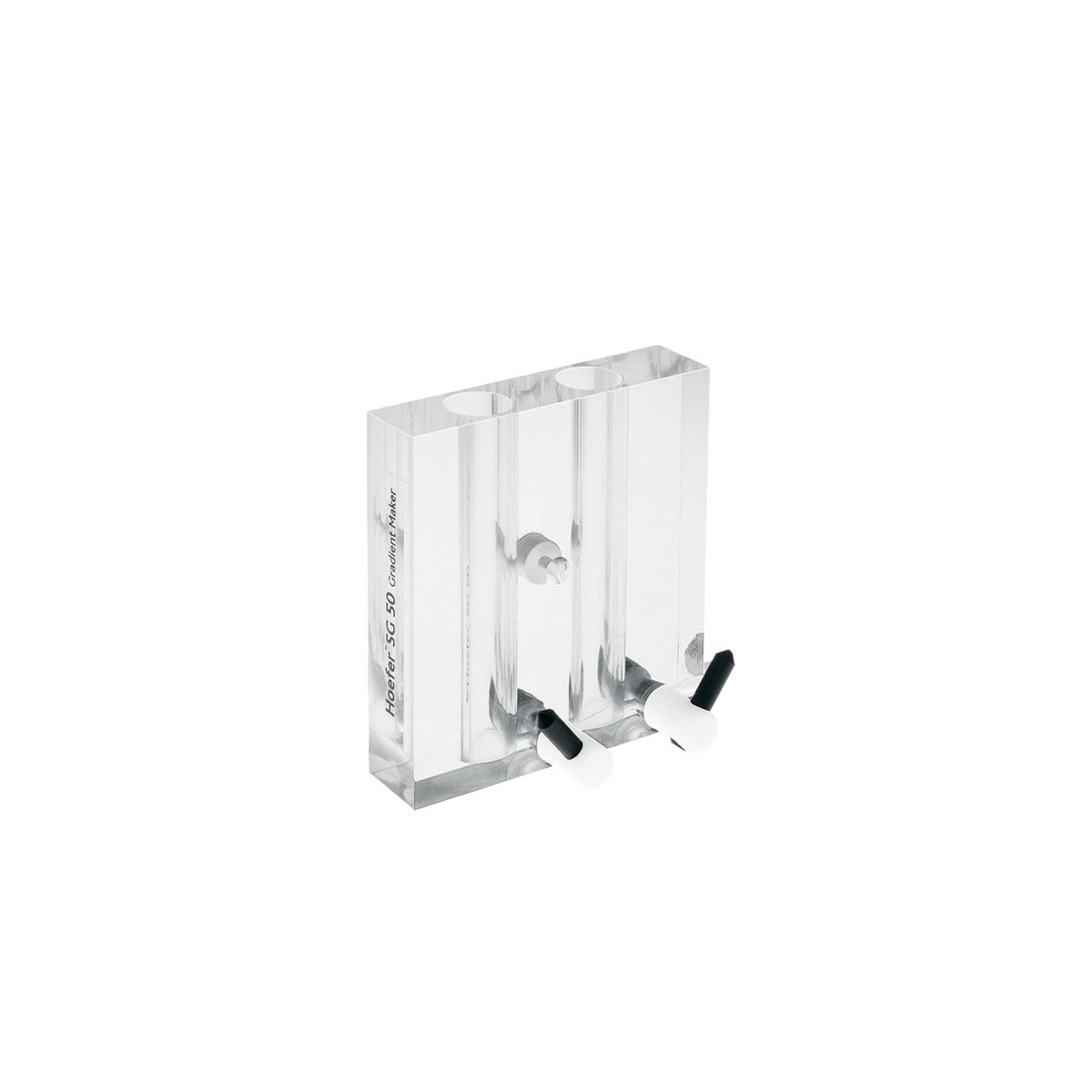

SG50  Gradient maker, 50 ml total volume 1

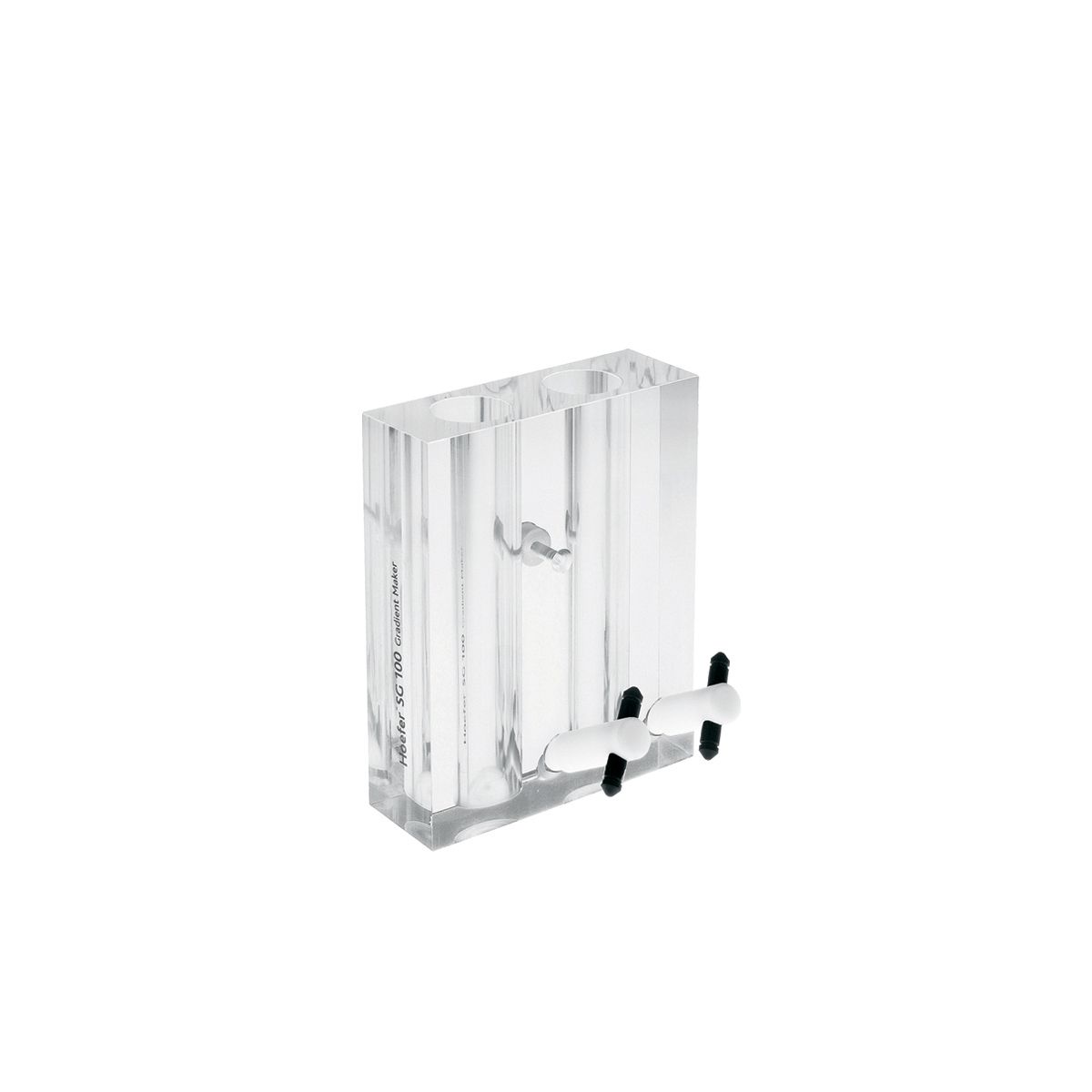

SG100  Gradient maker, 100 ml total volume 1
SG500  Gradient Maker, 500 ml total volume 1
SG100-6 White Luer outlet fitting, (4 mm) for SG15, SG30, SG50, SG100 1
SG100-1 Stopcock, standard size for SG15, SG30, SG50 1
SG100-9 Long stopcock, for SG100, connector stopcock 1
SG100-10 Short stopcock, for SG100, delivery stopcock 1



Gradient Maker Selection Guide

Gel Caster Gradient Maker
SE275, 4 gel caster, 10 x 8 cm plate size SG15 or SG 30
SE235, 4 gel caster, 10 x 10.5 cm plate size SG30 or SG50
SE215, 10 gel caster, 10 x 8 cm plate size SG50 or SG100
SE6015, single gel, 18 x 16 cm plate size SG15 or SG30
SE675, 4 gel caster, 18 x 16 cm plate size SG100 or SG500
SE615, 10 gel caster, 18 x 16 cm plate size SG500
SE915, 6 gel caster, 18 x 16 cm plate size SG500

NOTE: To calculate the volume required for each gel to be cast multiply the gel width (cm) x height (cm) x gel thickness (cm). Multiply this number by the number of gels to be cast and that will determine the volume gradient maker required.
