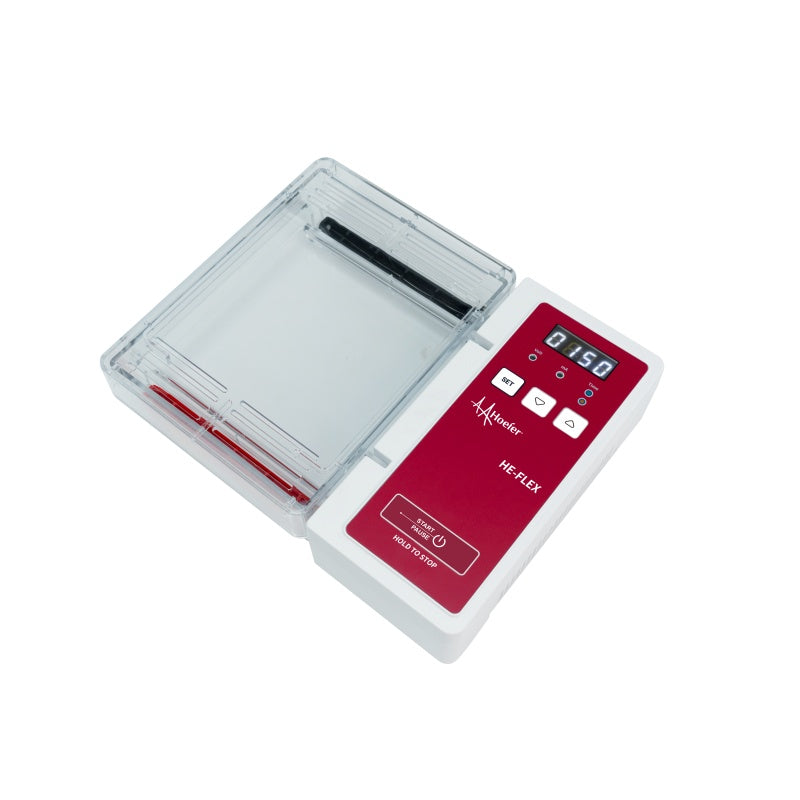

The HE-FLEX is completely integrated with a built-in variable power supply and provides a compact easy-to-use horizontal electrophoresis system for the separation of nucleic acids. An LED display enables easy viewing of the voltage, amperage, and time. Also featured is a 99:59 minute timer with an audible end of run alert. This all-in-one system is ideal for basic academic, educational and field-testing needs.
Features
- Precise Power Control – Adjustable 10–150 V / 10–400 mA in 10 V / 5 mA steps
- Flexible Gel Options – Multiple gel trays and combs for various applications
- Durable Tank Design – Rugged polycarbonate with vented lid for visible runs
- Compact Footprint – Space-saving design for any lab bench
- Reliable Operation – Stable performance and easy maintenance for routine use
Technical Specifications
Unit Dimensions (w x l x h) . . . . 19.5 x 26.3 x 6.2 cm
Gel Dimensions (w x l) . . . . . . . . 13 x 13 cm
Maximum Sample Capacity . . . .108 samples (4 combs, 27 samples each)
Buffer Capacity . . . . . . . . . . . . . . 500 ml
Distance Between Electrodes . . 13.5 cm
Weight . .. . . . . . . . . . . . . . . . . . . . 830g
Electrophoresis Tank
Overall Dimensions (w x l x h) . . 15 x 15 x 4.0 cm
Material Characteristic . . . . . . . . UV transmitting (50% at 254 nm, 80% at 312 nm)
Solution Volume . . . . . . . . . . . . . 500 ml
Power Supply
Input Voltage . . . . . . . . . . . . . . . AC 100 – 240 V, 50/60 Hz
Output Voltage . . . . . . . . . . . . . .10 to 150 volts in 10 V steps; constant peak voltage of 150 V
Output Amperage . . . . . . . . . . . 10 to 400 mA in 5 mA steps
Maximum Wattage . . . . . . . . . . .55 W
Timer . . . . . . . . . . . . . . . . . . . . . . .99 hours 59 min, or continuous run
Safety Switch . . . . . . . . . . . . . . . . A microsensor in the power supply prevents output without the safety lid in place
Memory Function . . . . . . . . . . . . Automatic memory (the last used Voltage & Time)
Safety Certifications . . . . . . . . . . CE
Ordering Information
| Cat. # | Description |
| HE-FLEX | HE-FLEX Electrophoresis Complete System |
Includes:
- Gel tank
- Safety lid
- Power supply

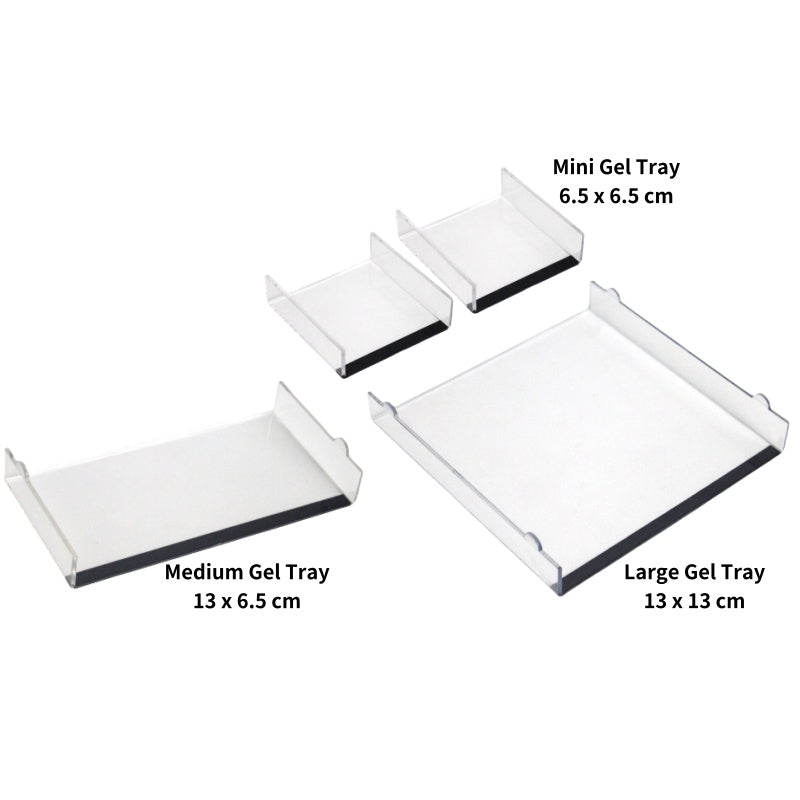

- Large gel tray, 13 x 13 cm, 1 pcs
- Medium gel tray, 13 x 6.5 cm, 1 pcs
- Mini gel trays, 6.5 x 6.5 cm, 2 pcs

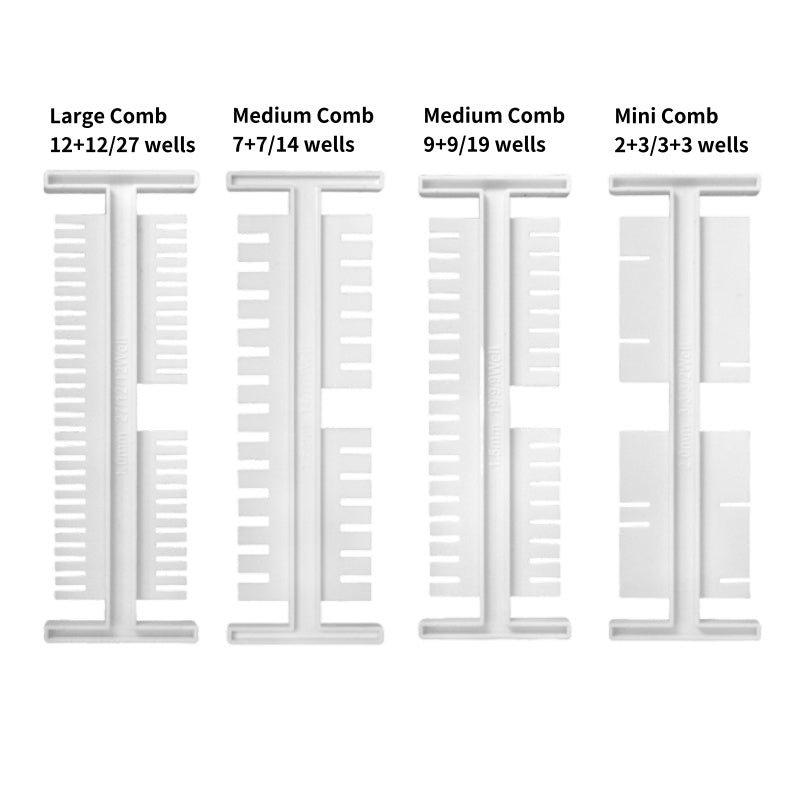

- Large combs 12+12/27 wells, 1 mm thick, 4 pcs
- Medium comb 9+9/19 wells, 1.5 mm thick, 1 pcs
- Medium comb 7+7/14 wells, 1.5 mm thick, 1 pcs
- Mini comb 2+3/3+3 wells, 2 mm thick, 1 pcs

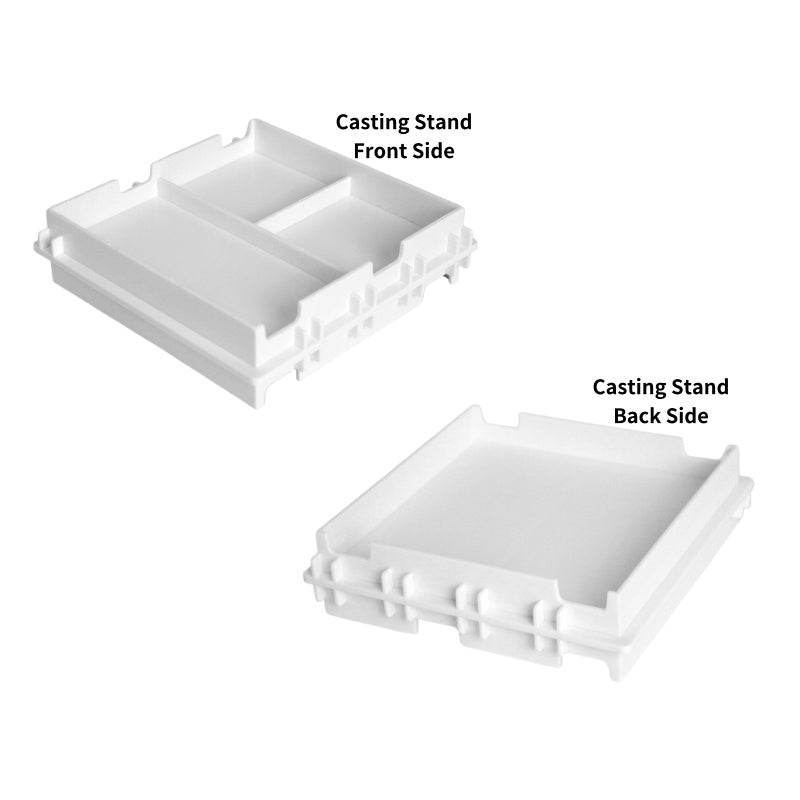

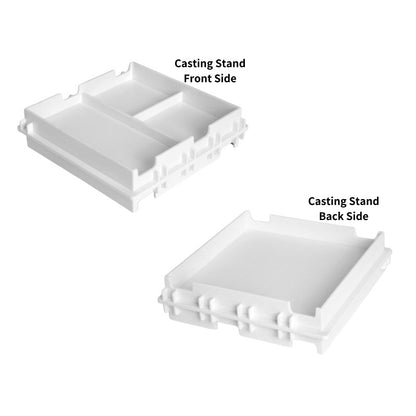

- Casting stand
