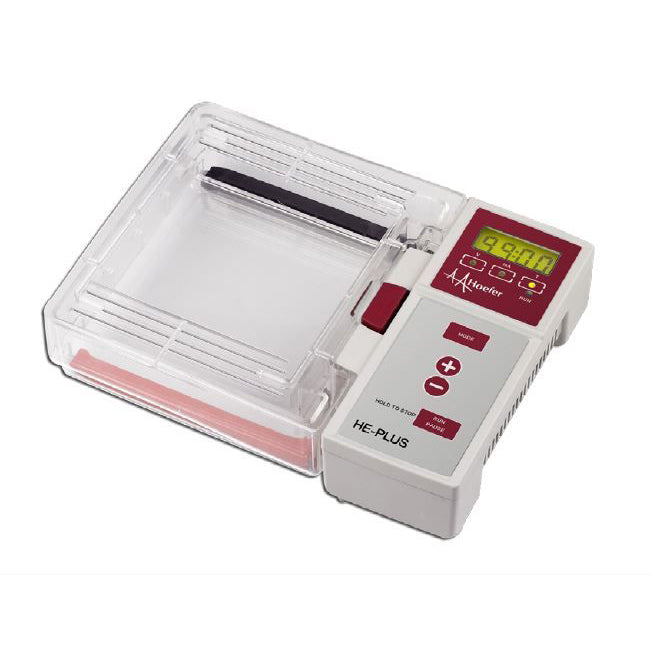

HE-PLUS Horizontal Nucleic Acid Electrophoresis System

HE-PLUS Horizontal Nucleic Acid Electrophoresis System

Complete horizontal nucleic acid electrophoresis system designed to meet a wide range of research application requirements



Regular price $880.00 USD
Regular price Sale price $880.00 USD
Sale Sold out
Item Description

View full details

The HE-PLUS is a compact easy-to-use horizontal electrophoresis system for the separation of nucleic acids. It has a built-in variable power supply. An LED display enables easy viewing of the voltage, amperage, and time. Also featured is a 99:59 minute timer with an audible end of run alert.

The HE-PLUS offers a high throughput 96-well format with multichannel pipette compatible combs for the direct loading of samples in a small footprint. The horizontal tank is made of rugged polycarbonate and has a vented lid to reduce condensation so the run can be visually monitored.


  • Compact and Easy to Use
  • Built-in Variable Power Supply with LED Display
  • Adjustable Power Supply from10 to 400 mA or 10 to 150 Volts
  • Built-in Timer with Audible Alert


  • Gel tank
  • Safety lid
  • Power supply
  • Large gel tray
  • Medium gel trays, 2 pieces
  • Large/medium comb 14/28 wells, 4 pieces
  • Casting stand


 Unit Dimensions
 (W x L x H)
24.5 x 17.0 x 6.2 cm
 Unit Weight 1.65 kg
 Gel Dimensions (W x L) 12.5 x 13.0 cm
 Maximum Sample Capacity  112 samples (4 combs, 28 samples each)
 Buffer Capacity 350 ml
 Distance Between Electrodes  13.5 cm
 Electrophoresis Tank
 Overall Dimensions
 (W x L x H)
18.3 x 16.4 x 5.6 cm
 Material Characteristic UV transmitting (50% at 254 nm, 80% at 312 nm)
 Solution Volume  350 ml
 Power Supply
 Overall Dimensions
 (W x L x H)
7.5 cm x 17.0 x 6.2 cm
 Weight 410 g
 Input Voltage AC 100 to 240 V, 50/60 Hz
 Output Voltage 10 to 150 volts; constant peak voltage of 150 V
 Output Amperage 10 to 400 mA
 Maximum Wattage 45 W
 Timer 99 hours 59 min, or continuous run
 Safety Switch A microsensor in the power supply prevents output without the safety lid in place
 Memory Function  Automatic memory (the last used Voltage & Time)
