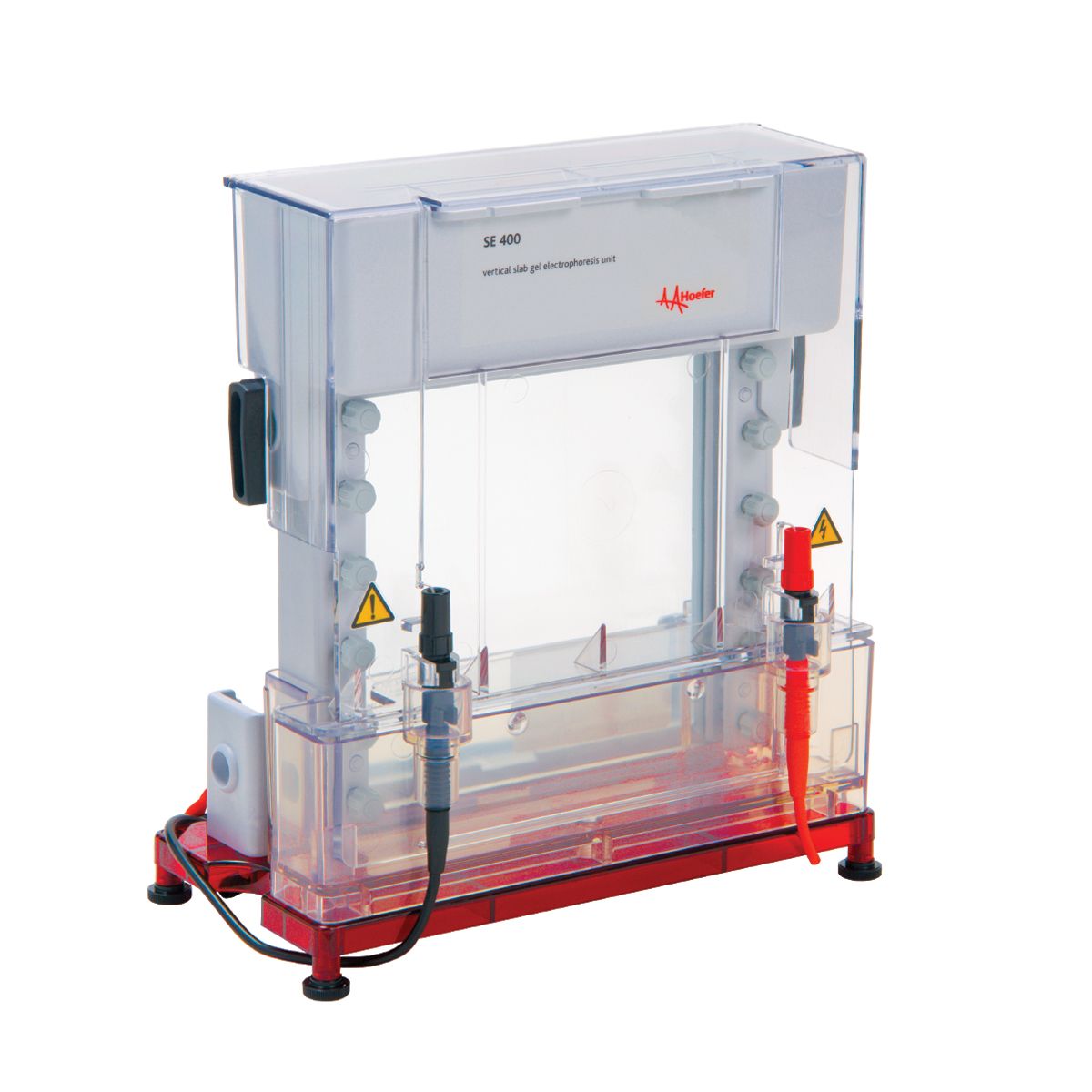

SE400 Air-Cooled Vertical Protein Electrophoresis Unit

SE400 Air-Cooled Vertical Protein Electrophoresis Unit

Compact, rugged, and economical units ideal for educational laboratories with multiple users



Regular price $1,370.00 USD
Regular price Sale price $1,370.00 USD
Sale Sold out
Item Description

View full details

The air-cooled SE400 is a compact, rugged, and economical protein electrophoresis unit ideal for educational laboratories with multiple users.


  • Maximum glass plate size 18 x 16 cm
  • Rugged injection molded construction is durable and assembles easily
  • Run two gels with the addition of a divider plate
  • Built-in casting stand seals leak free
  • Choose from a wide variety of accessories
  • Plates, clamps, spacers, and combs are interchangeable with the SE600 Series

Complete Unit Includes:

  • Lower Buffer Chamber/Casting Stand on Leveling Base with High Voltage Leads
  • Upper Buffer Chamber
  • Safety Lid with Electrodes
  • Glass Plates, 18 x 16 cm, 2 pcs
  • Clamp Assemblies, 16 cm, 2 pcs
  • Cams, 2 pcs
  • Slotted Gasket for Upper Buffer Chamber
  • Bubble Level
  • Laminated Gasket for Casting Stand
  • Spacer-Mate-Alignment Template
  • Wonder Wedge Plate Separation Tool
  • Gel Seal
  • Comb, 15-well, 1.5 mm thick
  • Spacers, 1.5 mm thick, 2 cm wide, 2 pcs

Basic Unit Includes:

The same as above without the combs and spacers. Order one SE511 comb and one set of 16 cm long spacers separately.


Glass Plate Size (W x H) 18 x 16 cm
Spacers 0.75 mm, 1.0 mm, 1.5 mm
Maximum Power Settings 500 V, 60 mA, 20 W
Maximum Temperature 45°C
Indoor Use 4 to 40°C
Humidity Up to 80%
Unit Dimensions (W x H x D) 24 x 28 x 15 cm
Basic Unit Weight 3.10 kg
