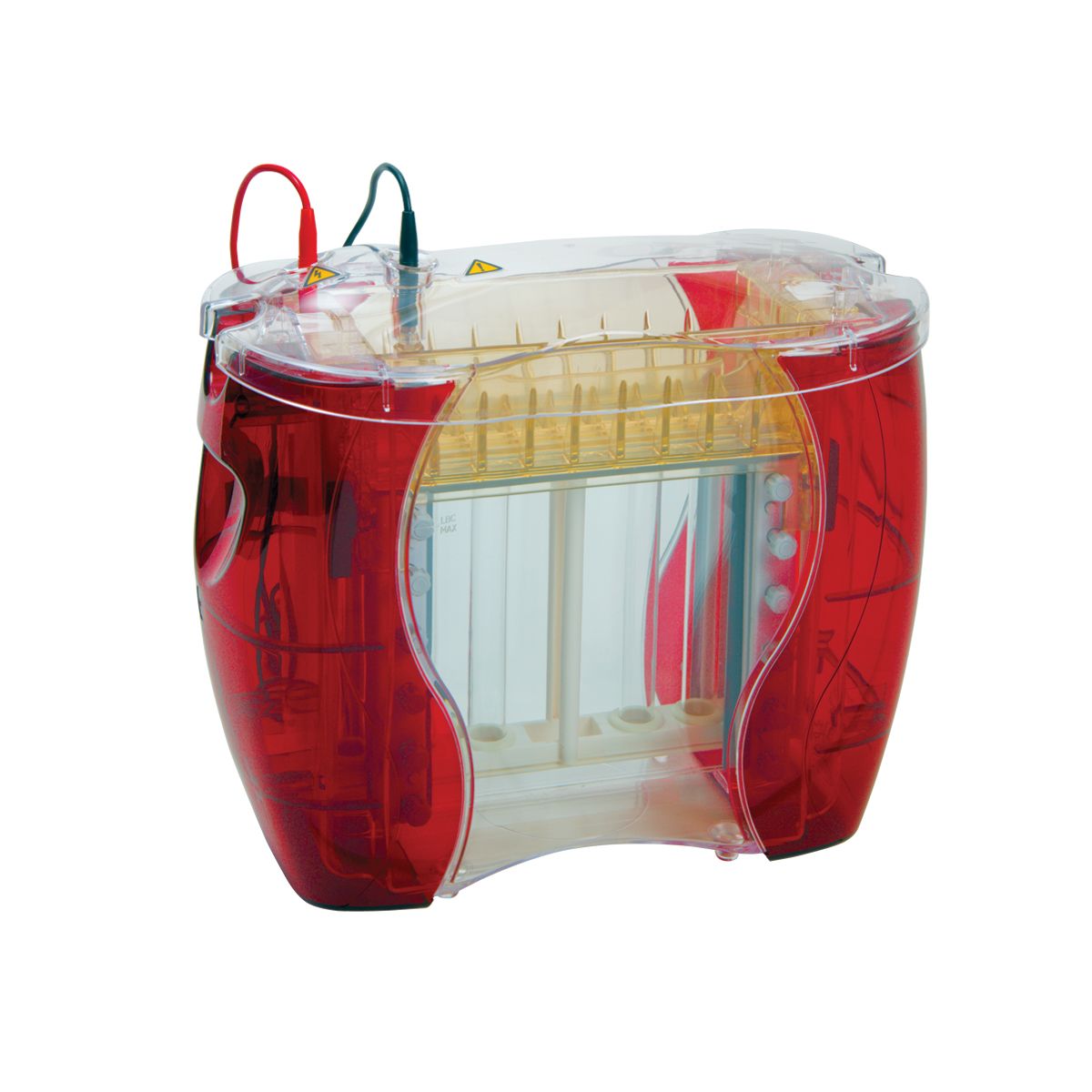

The SE600X Chroma Deluxe is a dual cooled vertical protein electrophoresis unit with an ergonomic design that offers easier handling and sample introduction than traditional styles.
Welcome to click on YouTube to watch in full screen.
Features:
- Maximum glass plate size 18 x 16 cm
- Gels are fully submerged for greater temperature equilibration
- Produces straight lanes and sharp,well-defined bands
- Run up to four gels (maximum 112 samples) at one time under identical conditions
- Accommodates denaturing and native polyacrylamide gels, and the second-dimension of 2-D electrophoresis
- Run gels at uniform temperature from 1 to 45°C
- A wide array of accessories enables you to tailor gel configurations to your needs
Complete Unit (SE600X-15-1.5) Includes:
- Lower Buffer Chamber
- Upper Buffer Chamber
- Safety Lid w/High Voltage Leads
- Heat Exchanger
- Glass Plates 18 x 16 cm-6 pcs
- Clamp Assemblies, 16 cm, 4 pcs
- Cams, 6 pcs
- Slotted Gaskets for Upper Buffer Chamber, 2 pcs
- Dual Gel Casting Stand with Leveling Base
- Bubble Level
- Laminated Gaskets for Caster, 2 pcs
- Buffer Dam
- Spacer-Mate Alignment Template
- Wonder Wedge Plate Separation Tool
- Gel Seal
- Combs, 15-well, 1.5 mm thick, 2 pcs
- Spacers, 1.5 mm thick, 2 cm wide, 4 pcs
Basic Unit (SE600X) Includes:
The same as above without the combs and spacers. Order two SE511 combs and two sets of 16 cm long spacers separately.
Specifications:
| Glass Plate Size (W x H) | 18 x 16 cm or 18 x 8 cm |
| Spacers | 0.75 mm, 1.0 mm, 1.5 mm |
| Maximum Power Settings | 1000 V, 500 mA, 50 W |
| Maximum Temperature | 45°C |
| Indoor Use | 4 to 40°C |
| Humidity | Up to 80% |
| Unit Dimensions (W x H x D) | 32 x 29 x 14 cm |
| Basic Unit Weight | 7.70 kg |
