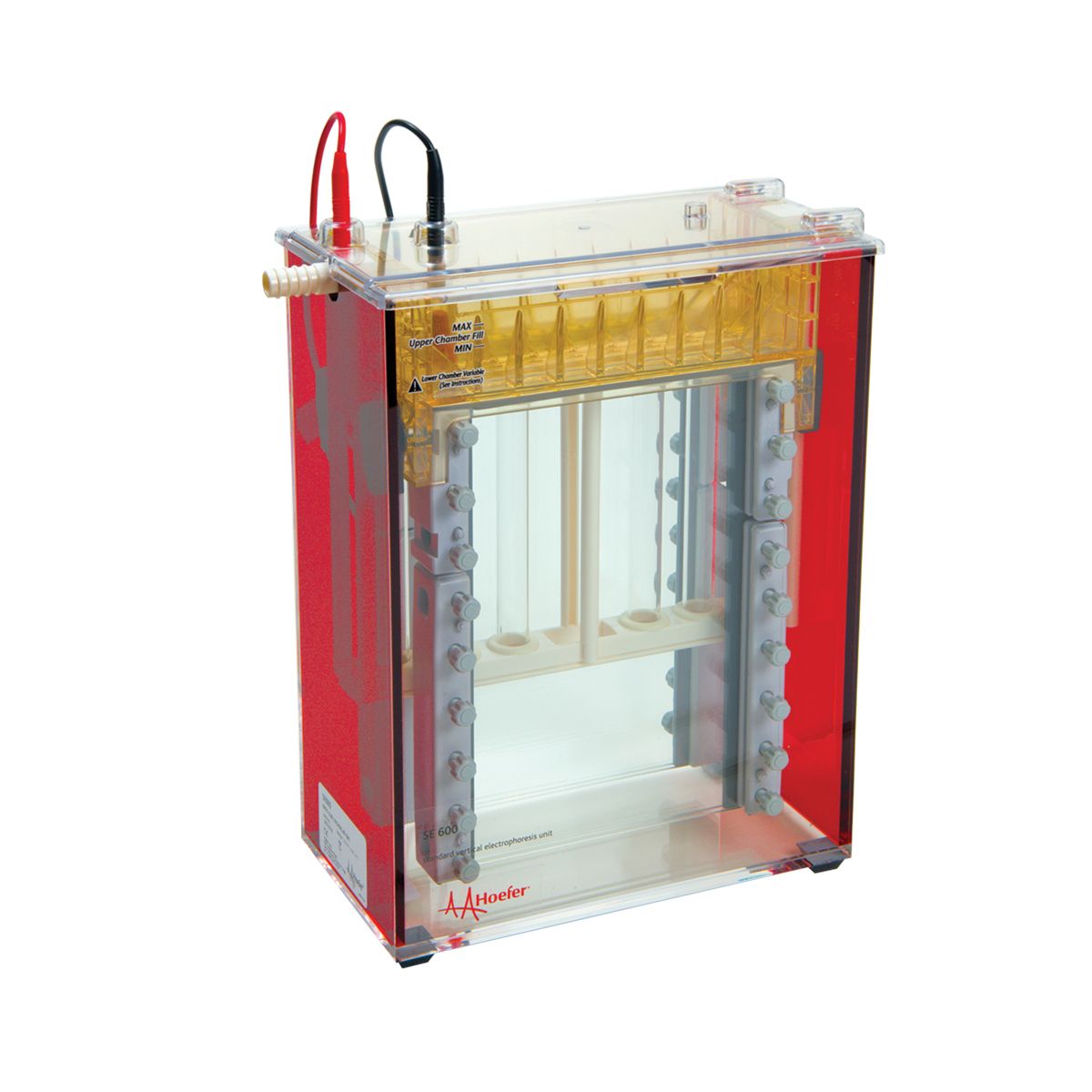

The SE660 is a tall dual cooled vertical protein electrophoresis unit that accommodates 24 cm long gels for increased resolution.
Welcome to click on YouTube to watch in full screen.
Features:
- Maximum glass plate size 18 x 24 cm
- Produce straight lanes and sharp,well-defined bands
- Run up to four gels (maximum 112 samples) at one time under identical conditions
- Run gels at uniform temperature from 1 to 45°C
- Accommodates denaturing and native polyacrylamide gels and 2-D electrophoresis
- A wide array of accessories allows you to tailor gel configurations to your needs
Complete Unit (SE660-15-1.5) Includes:
- Lower Buffer Chamber
- Upper Buffer Chamber
- Safety Lid w/High Voltage Leads
- Heat Exchanger
- Glass Plates 18 x 24 cm, 6 pcs
- Clamp Assemblies, 8 cm, 4 pcs
- Clamp Assemblies, 16 cm, 4 pcs
- Cams, 6 pcs
- Slotted Gaskets for Upper Buffer Chamber, 2 pcs
- Dual Gel Casting Stand with Leveling Base
- Bubble Level
- Laminated Gaskets for Caster, 2 pcs
- Buffer Dam
- Spacer-Mate-Alignment Template
- Wonder Wedge™-Plate Separation Tool
- Gel Seal
- Combs, 15-well, 1.5 mm thick, 2 pcs
- Spacers, 1.5 mm thick (2 cm wide), 4 pcs
Basic Unit (SE660) Includes:
The same as above without the combs and spacers. Order two SE511 combs and two sets of 24 cm long spacers separately.
Specifications:
| Glass Plate Size (W x H) | 18 x 24 cm, 18 x 16 cm or 18 x 8 cm |
| Spacers | 0.75 mm, 1.0 mm, 1.5 mm |
| Maximum Power Settings | 1000 V, 500 mA, 50 W |
| Maximum Temperature | 45°C |
| Indoor Use | 4 to 40°C |
| Humidity | Up to 80% |
| Unit Dimensions (W x H x D) | 32 x 37 x 14 cm |
| Basic Unit Weight | 8.80 kg |
