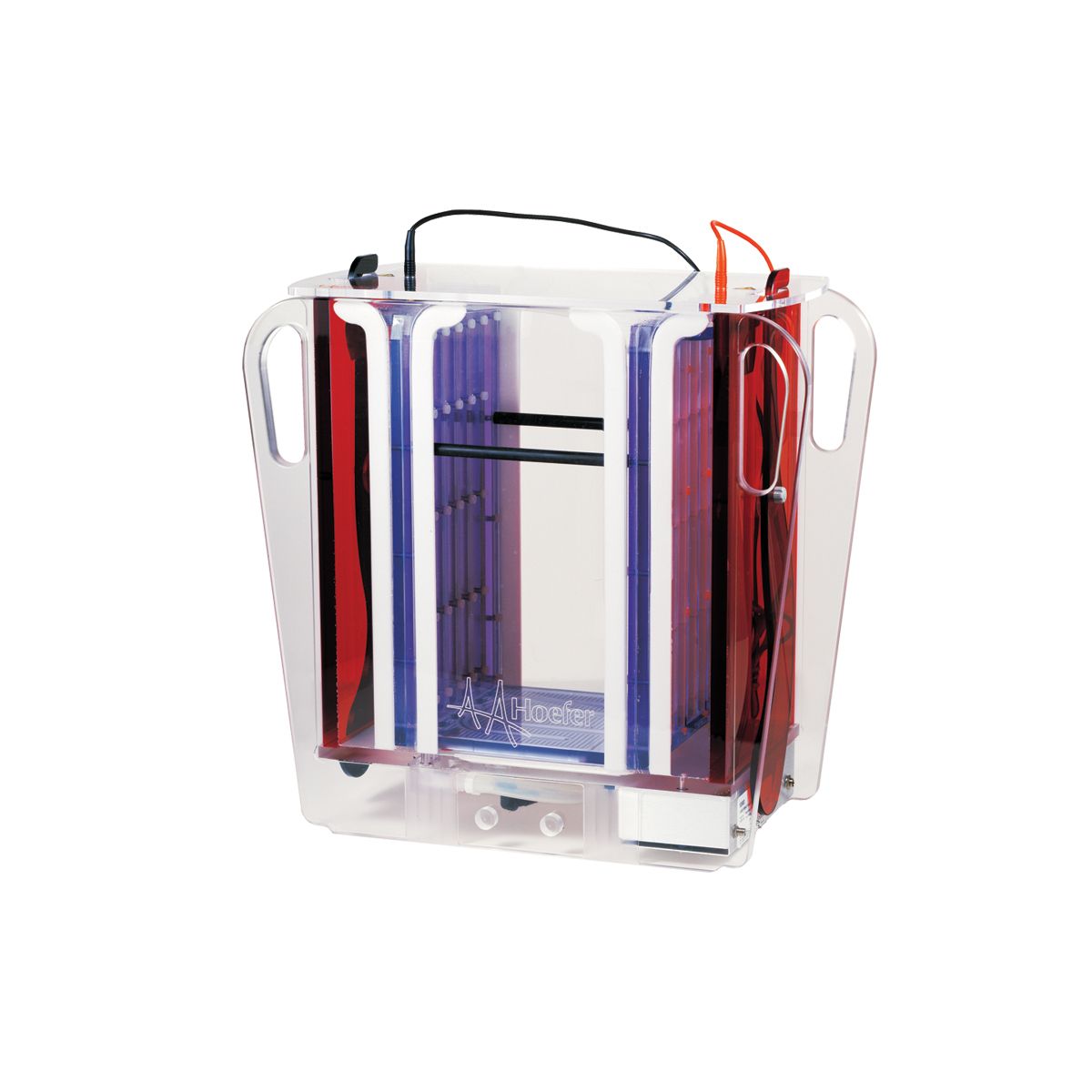

The SE900 was designed as a dedicated unit for second dimension electrophoretic separation. It can accommodate up to six 28 cm SDS-PAGE gels. If desired, the unit will accommodate plates of similar size made by other manufacturers.
Features & Benefits:
- No upper buffer chamber—no gasket issues and no risk of buffer loss
- Utilizes minimal parts—easy to use and reliable
- External cooling and internal buffer circulation—ensures an even,constant, and uniform temperature for reproducible results
- Up to six 28 cm plates can be run at one time—perfect for high throughput applications
- Glass plate sandwiches are hinged cassettes—allows for rapid and easy assembly before use
- Built-in draining port—avoids lifting of a heavy buffer-filled tank
- Assembly of the tank is easy—no clamps needed Innovative design enables re-use of tank buffer
- Innovative design enables re-use of tank buffer—decreased buffer consumption for reduced cost
Complete Unit (SE900-1.0) Includes:
- Separation Tank
- Tubing Kit
- Lid with High Voltage Leads
- Multiple Gel Caster
- Internal PAGE Rack
- Hinged Glass Cassettes-6 pcs
Basic Unit (SE900) Includes:
- Separation Tank
- Tubing Kit
- Lid with High Voltage Leads
- Internal PAGE Rack
Specifications:
| Gel Plate Size | 28 x 21 cm (W x H) |
| Gel Size | 25 x 20 cm (W x H) |
| Maximum Power Settings | 600 V, 1000 mA, 150 W |
| Maximum Temperature | 45°C |
| Humidity | Up to 80% |
| Unit Dimensions (W x H x D) | 43 x 43 x 20 cm |
| Rating | 100 to 240 V, 50 to 60 Hz, 2A |
| Buffer Pump | 50,000 hour pump life |
| Weight | 13.6 kg |
