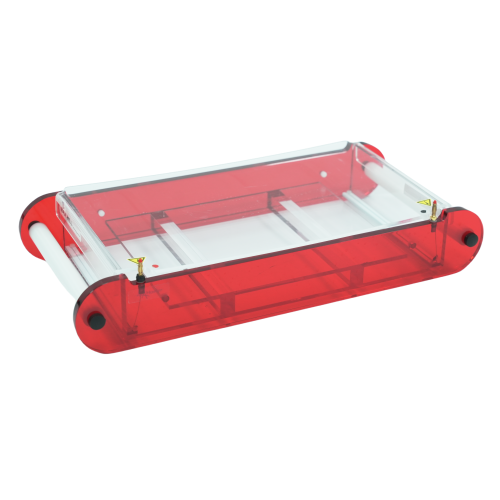

Designed for high-throughput nucleic acid analysis, the SUB Evo can process up to two 96-well plates at once and works seamlessly with 8-channel pipettes for fast, efficient sample loading. The innovative plug-free lid makes operation easier while protecting the electrodes. With a multi-functional casting stand, three gel tray sizes, and six compatible combs, you can speed up the workflow from gel casting to sample loading.
Features and Benefits
• High Throughput – Run up to 216 samples, compatible with 8- or 12-channel pipettes.
• Sequential 8-Channel Loading – Efficient operation and smooth result review.
• Flexible Gel Setup – Supports gels up to 17×25 cm with multiple trays and combs.
• Plug-Free Lid – Smooth operation while protecting electrodes.
• UV-Transparent Tray – Allows gel imaging without removal.
• Safe & Portable Design – Sturdy handles ensure secure use and easy transport.
Specifications
Gel Dimensions (w x l) . . . . . . . . . . . .17 x 25 cm, 17 x 17.5 cm, and 17x 7.5 cm
Comb . . . . . . . . . . . . . . . . . . . . . . .. . . 1.5 mm, 18+36 wells
Base Buffer Volume . . . . . . . . . . . . . . 900 mL
Maximum Power Settings . . . . . . . . .1000 V, 500 mA, 500 W
Maximum Sample Capacity . . . . . . . .216
Unit Dimensions (l x h x w) . . . . . . . . 42.2 x 19.7 x 7.2 cm
Safety Certifications . . . . . . . . . . . . . . CE
Ordering Information
| Cat.# | Description |
| SUB Evo | SUB Evo Horizontal Electrophoresis Unit |
Includes:
• Gel tank
• Safety lid
• Large gel tray, 17 x 27 cm, 1 pcs
• Medium gel tray, 17 x 17.5 cm, 1 pcs
• Mini gel trays, 17 x 7.5 cm, 1 pcs

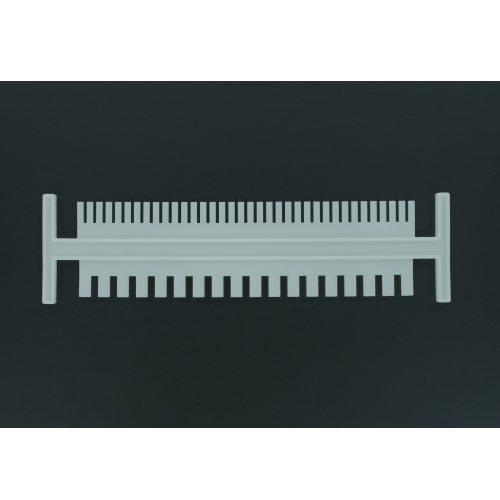

• Large comb 18+36 wells, 1.5 mm thick, 6 pcs

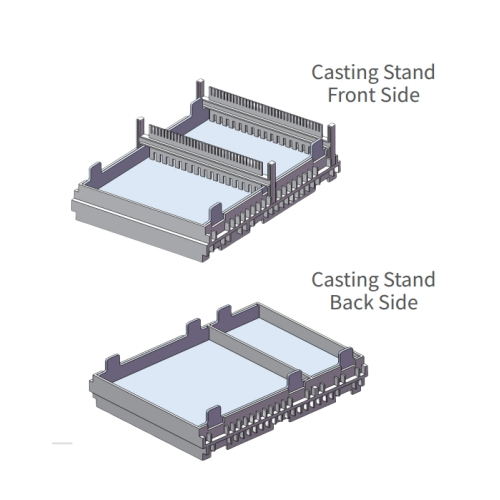

• Casting stand
