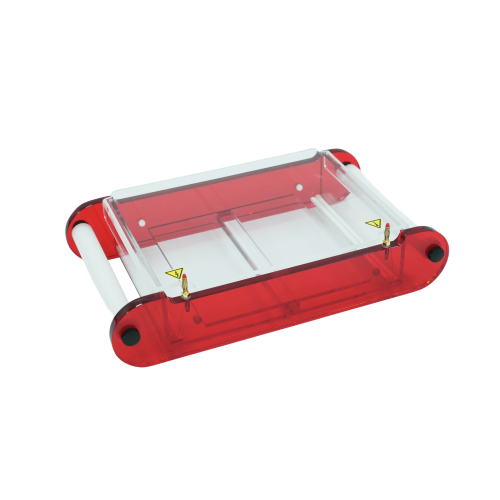

The SUB Swift is a flexible, efficient, and user-friendly horizontal electrophoresis Unit. Building on the classic SUB series, it has been fully upgraded to handle workflows from single-sample tests to 96-well high-throughput runs. Its innovative plug-free lid ensures smooth operation and protects electrodes, while the ergonomic handle and versatile gel casting system meet the diverse needs of routine research and large-scale applications.
Features and Benefits
• High Throughput – Run up to 108 samples; compatible with multichannel pipettes
• Plug-Free Lid – Open easily, protect electrodes, streamline workflow
• Versatile Gel Casting – Modular casting tray system for flexible experiment setup
• UV-Transparent Tray – Direct UV viewing and imaging without gel transfer
• Safe & Portable – Stable handle and lightweight body for secure grip and easy transport
Specifications
Gel Dimensions (w x l) . . . . . . . .13 x 13 cm, 13 x 6.5 cm, 6.5 x 6.5 cm

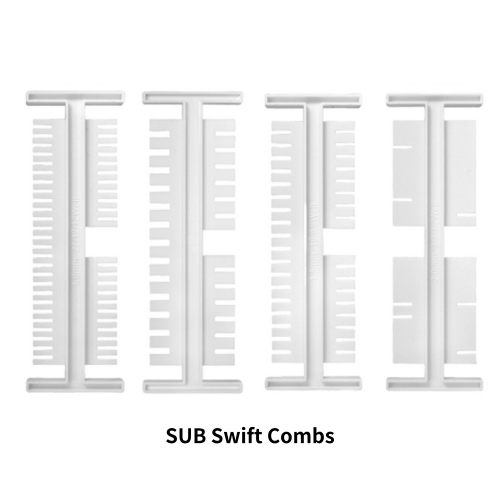

Combs. . . . . . . . . . . . . . . . . . . . . 1.0 mm, 12+12/27 wells
1.5 mm, 9+9/19 wells
1.5 mm, 7+7/14 wells
2.0 mm, 2+3/3+3 wells
Base Buffer Volume . . . . . . . . . . 300 ml
Maximum Sample Capacity . . . 108
Maximum Power Settings . . . . .300 V, 200 mA, 60 W
Unit Dimensions (l x w x h) . . .32 x 20 x 7 cm
Safety Certifications. . . . . . . . . CE
Ordering Information
| Cat.# | Description |
| SUB Swift | SUB Swift Horizontal Electrophoresis Unit |
Includes:
• Gel tank
• Safety lid

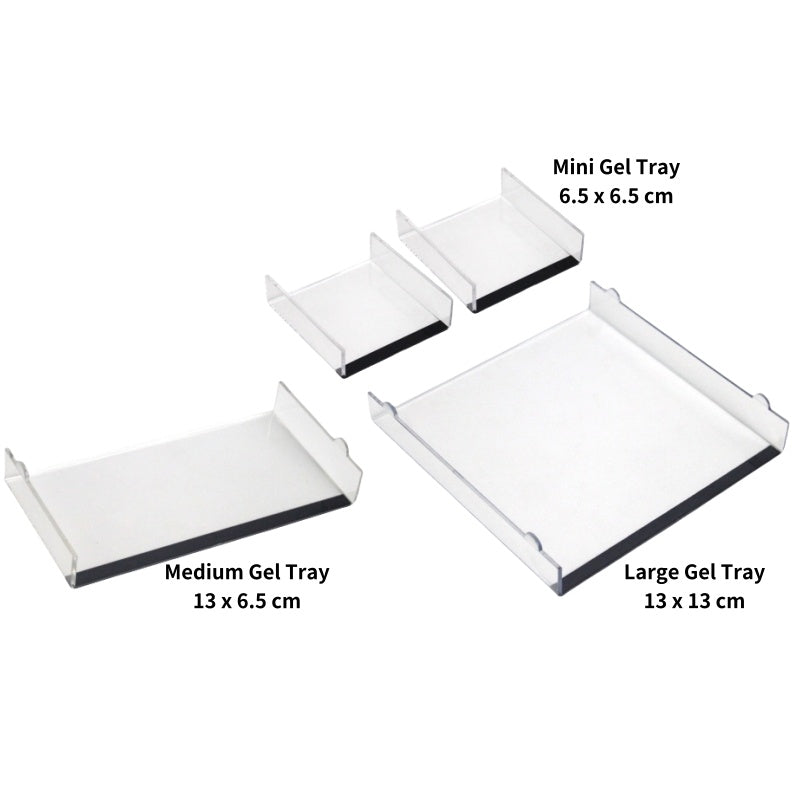

• Large gel tray, 13 x 13 cm, 1 pcs
• Medium gel tray, 13 x 6.5 cm, 1 pcs
• Mini gel trays, 6.5 x 6.5 cm, 2 pcs
• Large comb 12+12/27 wells, 1 mm thick, 4 pcs
• Medium comb 9+9/19 wells, 1.5 mm thick, 1 pcs
• Medium comb 7+7/14 wells, 1.5 mm thick, 1 pcs
• Mini comb 2+3/3+3 wells, 2 mm thick, 1 pcs

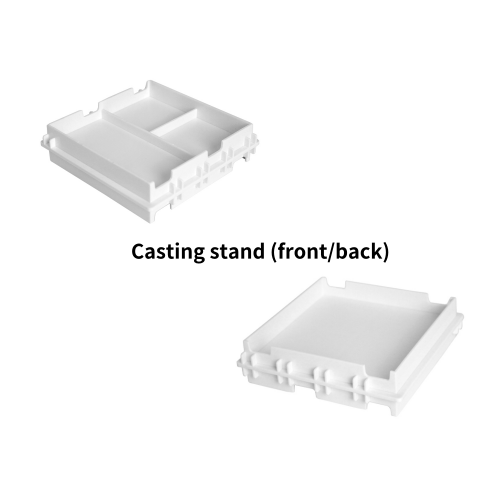

• Casting stand
