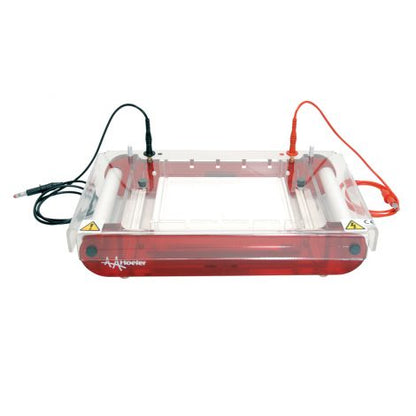

SUB15 Standard Submarine Gel Electrophoresis Unit

SUB15 Standard Submarine Gel Electrophoresis Unit

Provides the most commonly used tray size and comb options



Regular price $760.00 USD
Regular price Sale price $760.00 USD
Sale Sold out

View full details

The SUB15 Standard Gel Electrophoresis Unit is a highly versatile option for screening nucleic acid samples ranging from DNA mini-preps to PCR products. 120-sample maximum throughput.

Features and Benefits

  • The market standard—a 15 x 15 cm gel tray, with comb options ranging from 1 to 30 samples
  • Multi-channel pipette compatible combs—with a maximum 30 sample throughput reduce gel loading time, while preparatory combs enable nucleic acids to be scaled-up for cloning
  • Color-coded and height adjustable combs—easily identify comb thickness at a glance and control well depth
  • Buffer recirculation ports—may be connected to a peristaltic pump for buffer recirculation during electrophoresis to maintain buffer pH and prevent ionic gradient formation
  • Colored loading strips—for easy well detection when loading
  • UV-transparent running tray—allows the user to image the gel without risk of damage due to handling
  • Side handles—for safe and easy transportation around the laboratory


  • Buffer Chamber Assembly
  • Safety Lid
  • High Voltage Leads
  • Running Tray with Casting Gates*
  • 1 mm thick, 16-well combs, 2 pcs
  • Colored Loading Strips
  • Buffer Recirculation Ports, 2 pcs

* The included casting gates conveniently and efficiently seal the running tray without the hassles of using tape.


Gel Dimensions (W x L)  15 x 15 cm
 Maximum Buffer Volume  1.2 L
 Maximum Power Settings  300 V, 200 mA, 60 W
 Maximum Sample Capacity  120
 Maximum Running Temperature  45°C
 Indoor Use  4 to 40°C
 Humidity  Up to 80%
 Unit Dimensions (W x L x H)  21.5 x 33.5 x 7 cm
Unit Weight 2.90 kg
