SUBHT High Throughput Submarine Gel Electrophoresis Unit

SUBHT High Throughput Submarine Gel Electrophoresis Unit

Ideal for high throughput screening applications like single strand polymorphism (SSP) analysis following PCR

HOEFER | SKU:

SKU:SUBHT

Regular price $800.00 USD
Regular price Sale price $800.00 USD
Sale Sold out

View full details

The SUBHT High Throughput Submarine Gel Electrophoresis Unit is ideal for high throughput screening applications like single strand polymorphism (SSP) analysis following PCR. This  horizontal gel unit can resolve DNA strands from 50–1000 base pairs in 30 minutes and accommodate up to 120 samples.

Features & Benefits:

  • Fast, error-free loading—Load an entire 96-well plate using a multichannel pipette

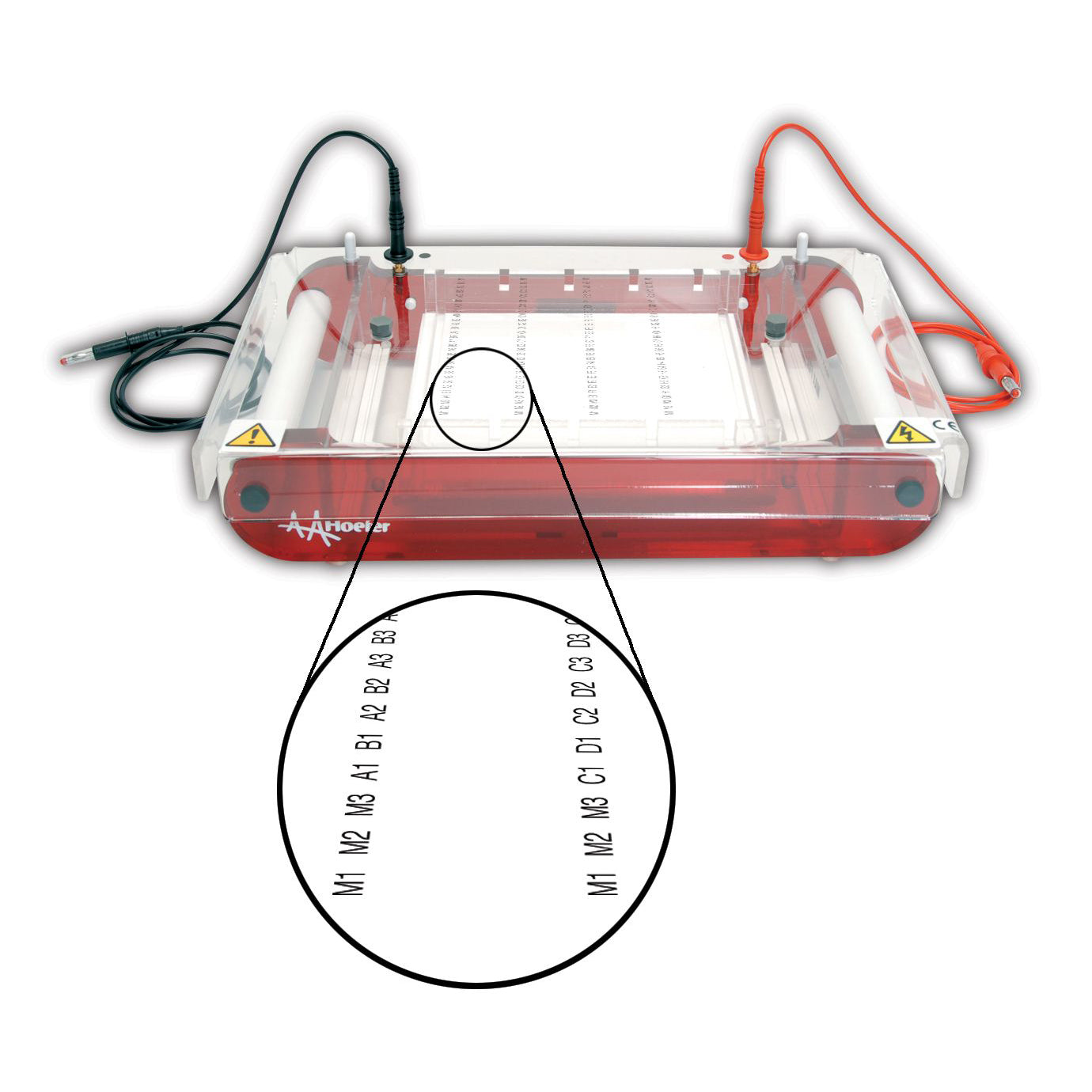

  • Simplified analysis—Fluorescent labels for each sample printed on a UV transparent gel tray allows for instant sample identification (matched to a 96-well plate) during post-run visualization
  • High throughput—Run up to 120 samples (96-well plate + 24 control and/or marker samples) in 30 minutes
  • Better reproducibility—Eliminate variability caused by running buffer pH drift and ionic gradient formation with optional buffer recirculation capability
  • Reduced buffer needs—Compact tank design needs less buffer to cover gel which not only reduces buffer consumption but provides greater control of voltage gradients and run times
  • Maximum flexibility—Fully compatible with a wide range of combs and accessories to meet all your high throughput and standard gel analysis needs

Includes:

  • Buffer Chamber Assembly
  • Safety Lid
  • High Voltage Leads
  • Fluorescent Labeled Running Tray with Casting Gates
  • 1 mm thick, 30 well combs, 4 pcs
  • Colored Loading Strips
  • Buffer Recirculation Ports, 2 pcs

Specifications:

Gel Dimensions (W x L)  15 x 15 cm
 Maximum Buffer Volume  1.2 L
 Maximum Power Settings  300 V, 200 mA, 60 W
 Maximum Sample Capacity  120
 Maximum Running Temperature  45°C
 Indoor Use  4 to 40°C
 Humidity  Up to 80%
 Unit Dimensions (W x L x H)  21.5 x 33.5 x 7 cm
 Unit Weight  2.94 kg
