VP200 Vacuum Pump, Universal VAC

VP200 Vacuum Pump, Universal VAC

Companion pump to GD2000 Vacuum Gel Dryer



Regular price $3,480.00 USD
Regular price Sale price $3,480.00 USD
Sale Sold out

View full details

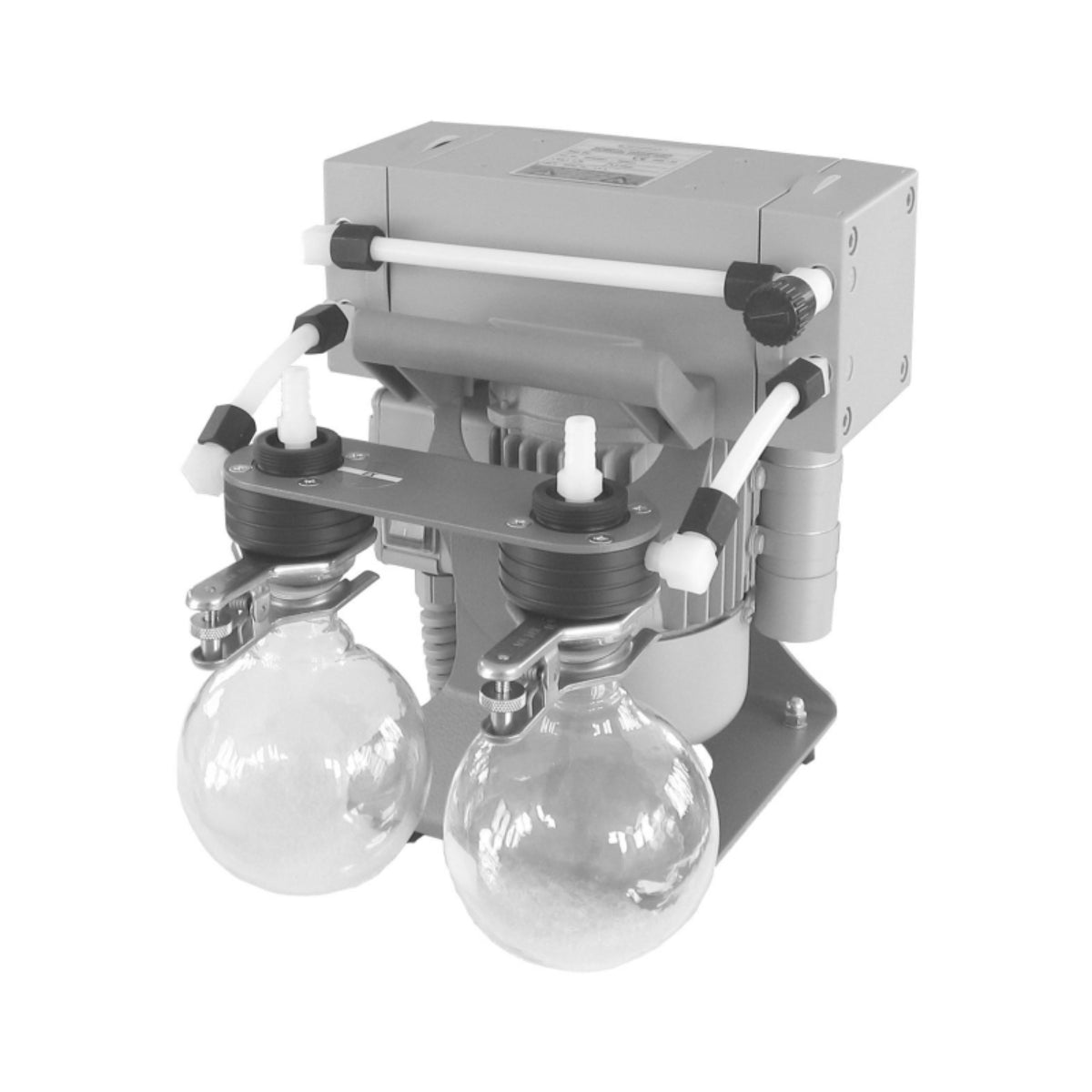

The VP200 Vacuum Pump is especially well suited to dry gels on the Hoefer GD2000 Vacuum Gel Dryer. The pump is highly resistant to water vapor, acid, and gel staining solution vapors. Two vapor trap flasks capture condensate at both the pump inlet and outlet. Each flask is held in place by a single clamp for quick and easy removal and cleaning. The pump is robust, easy to use, and requires minimal maintenance.


Maximum Pumping Speed 120 VAC 60 Hz, 1.2 cfm
230 VAC 50/60 Hz, 1.7/2.0 m3/h
Ultimate (total) Pressure (absolute) 9 mbar
Ultimate (total) Pressure (absolute)
with Glass Ballast
20 mbar
Max. Permitted Outlet Pressure (absolute) 2 bar
Motor Power 180 W
Motor Protection Overload cutout (manual reset)
Rated Current Draw 120 VAC 60 Hz, 2.9 A
230 V ~50/60 Hz, 1.5/1.45 A
Degree of Protection IEC 529 IP 54
 Operating Temperature 0 to 40°C
 Storage Temperature -10 to 60°C
 Operating Relative Humidity
30 to 85%
 Sound Pressure Level
(enveloping surface method at 1 m)
41 dBA
 Rated Motor Speed at 50/60 Hz 1500/1800 rpm
 Inlet/Outlet Port Hose Nozzle Tubing Size ID 10 mm, 1/8-27 NPT
 Dimensions (W x H x D) 31 cm x 29.5 cm x 24 cm
 Weight 11.7 kg
