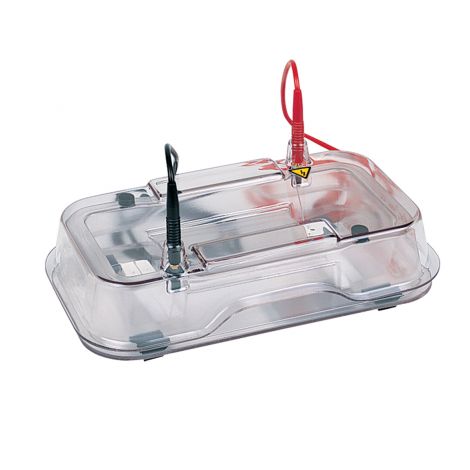

The HE33 Mini Horizontal Agarose Electrophoresis Unit is designed for very fast separations of DNA restriction fragments in agarose gels. To achieve passive cooling, you simply fill the clear molded base with 50% ethylene glycol coolant solution, seal it, and place it in a freezer or ice bath until ready to use.
Features and Benefits
- Fast separations—run a 7 x 10 cm gel in as little as 5 minutes
- UV transparent running tray—allows the user to image the gel without risk of damage due to handling
- Variety of comb sizes—enables customization of sample throughput to fit your laboratory's requirements
- Adjustable comb height—complete control over well depth
Complete Unit Includes:
- Buffer Chamber Assembly
- Safety Lid with High Voltage Leads
- Running Tray
- Casting Tray
- Foam Gaskets, 4 pcs
- Bubble Level
- 1.5 mm thick, 8-well comb
- Comb Back
Basic Unit Includes:
The same as above without the comb and comb back. Order separately.
Ordering Information:
| Cat # | |
| HE33-8-1.5 | HE33 Complete Unit |
| HE33B | HE33 Basic Unit |
Specifications:
| Gel Dimensions (W x L) | 7 x 10 cm |
| Maximum Buffer Volume | 250 ml |
| Maximum Power Settings | 500 V for (5 min or less), 500 mA, 15 W |
| Maximum Sample Capacity | 32 |
| Maximum Temperature | 50°C |
| Indoor Use | 4 to 40°C |
| Humidity | Up to 80% |
| Unit Dimensions (L x H x W) | 24 x 7 x 13 cm |
| Basic Unit Weight | 0.80 kg |
