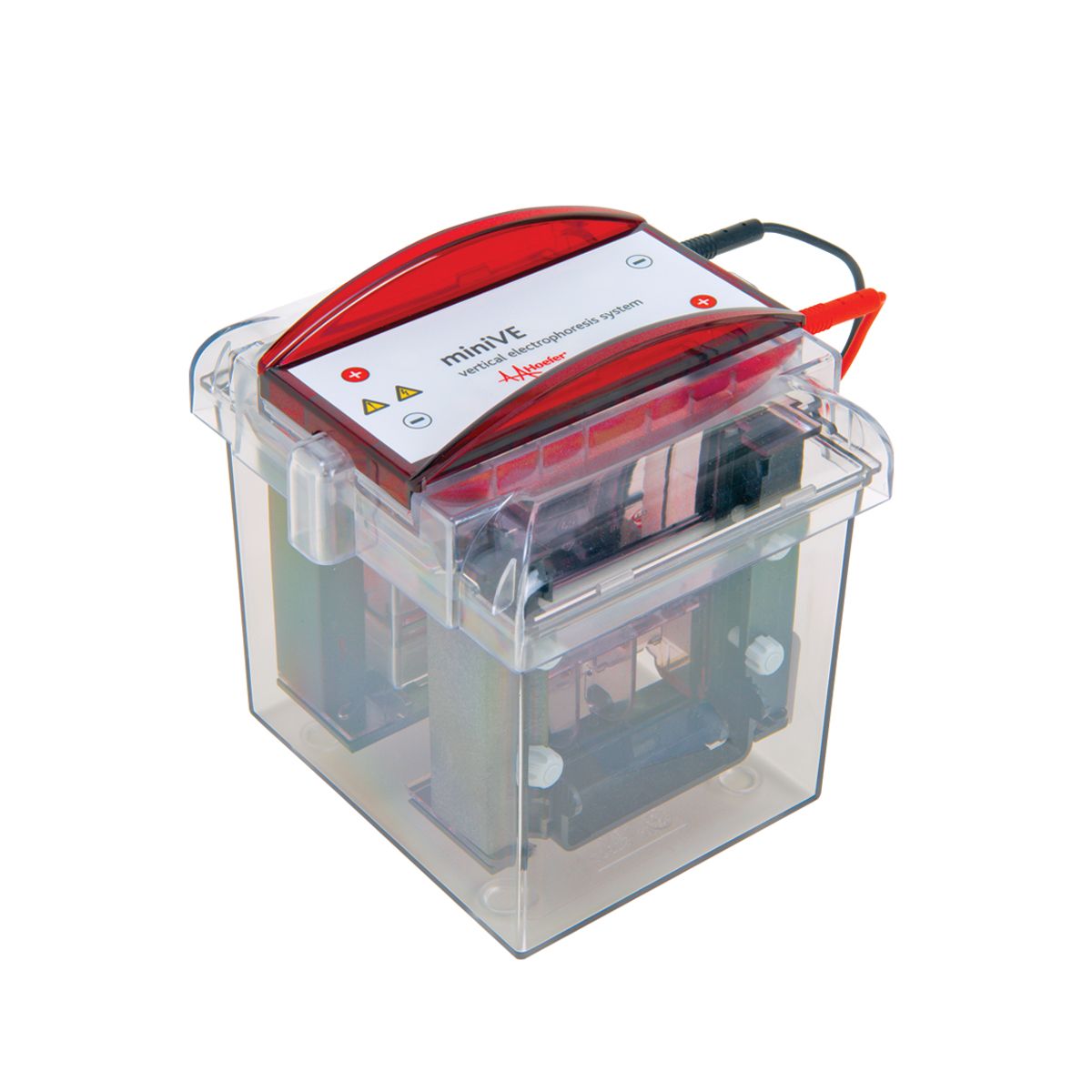

SE300 miniVE Integrated Vertical Protein Electrophoresis and Blotting Unit

SE300 miniVE Integrated Vertical Protein Electrophoresis and Blotting Unit

Perform both electrophoresis and electro transfer in one sturdy, compact unit

HOEFER | SKU:

SKU:SE300-10A-1.0

常规价格 $1,400.00 USD
常规价格 促销价 $1,400.00 USD
促销 售罄
Item Description

查看完整详细信息

The SE300 minVE is a sturdy, compact vertical protein electrophoresis unit that also performs electro transfer (blotting).

Features:

  • Quick, excellent results using minimal buffer
  • Passive cooling produces gels with straight lanes and sharp bands
  • Cast your own or use precast gels from a variety of manufacturers
  • Transfer up to 4 gels in 45 minutes with only 300 ml buffer using optional SE302 Blot Modules
  • Designed for use with a wide variety of precast gels

Complete Unit Includes:

  • Lower Buffer Chamber (tank)
  • Gel Modules with Gaskets, 2 assemblies
  • Safety Lid with High Voltage Leads
  • Glass Plates, Rectangular, 10 x 10.5 cm, 3 pcs
  • Glass Plates, Notched, 10 x 10.5 cm, 3 pcs
  • Combs, 10-well, 1.0 mm thick, 2 pcs
  • T-Spacers, 1.0 mm thick, 4 pcs
  • Well-Locating Decals, 2 pcs
  • Wonder Wedge Plate Separation Tool
  • Gel Seal

Basic Unit Includes:

The same as above without the combs, spacers, and glass plates. For use with precast gels or order two SE211A combs, two sets of 10.5 cm long spacers, and 10 x 10.5 cm rectangular and notched glass plates separately.

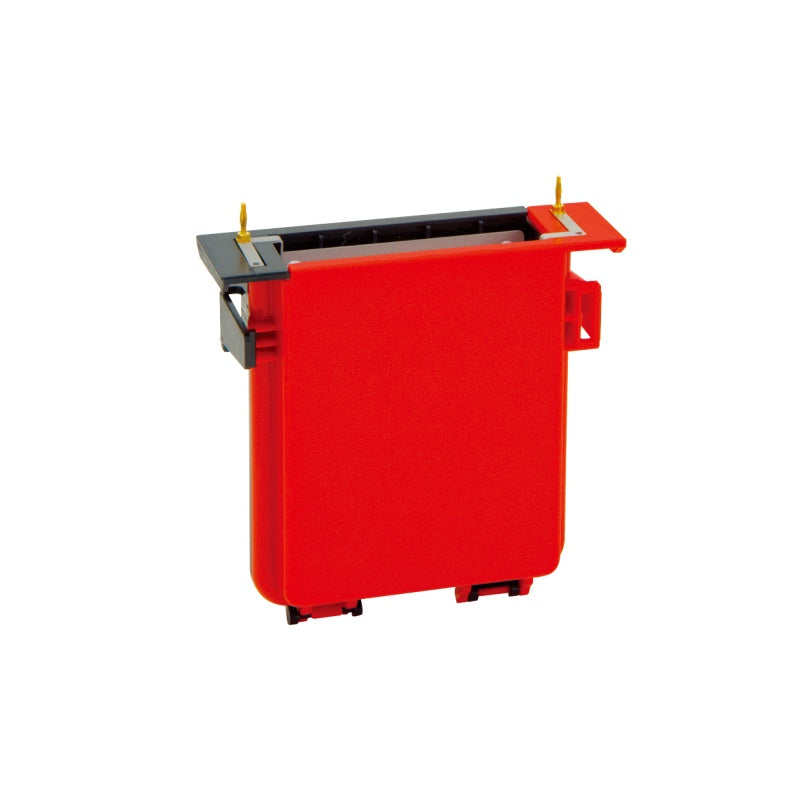

Blot Module Includes:

  • Blot Module
  • Blotter Paper, 25 sheets
  • Dacron Sponges, 6 mm thick, 4 pcs.

Ordering Information:

Cat #
SE300-10A-1.0 miniVE Complete Unit
SE300 miniVE Basic Unit
SE302 miniVE Blot Module



Specifications:

Glass Plate Size (W x H) 10 x 10.5 cm or 10 x 8 cm
Spacers 0.75 mm, 1.0 mm, 1.5 mm
Maximum Power Settings 1000 V, 500 mA, 50 W
Maximum Temperature 45°C
Indoor Use 4 to 40°C
Humidity  Up to 80%
Unit Dimensions (W x H x D) 32 x 37 x 14 cm
Unit Weight 2.20 kg
