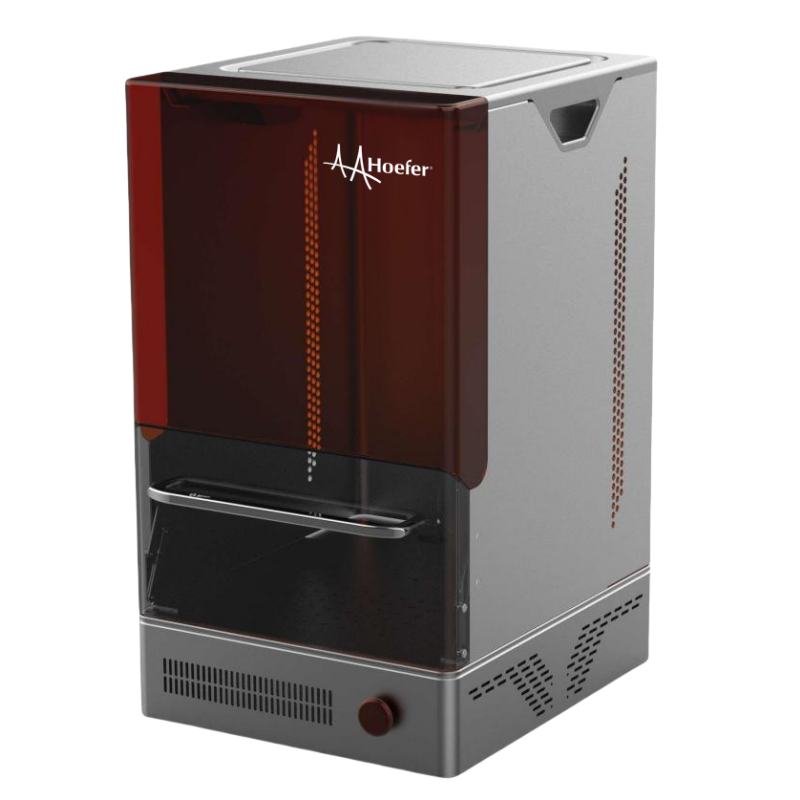

Smart TubeLaser
Smart TubeLaser
The Smart TubeLaser series is designed for permanent, high-contrast laser marking of Hoefer editable tubes, normal cryogenic tubes and other laboratory consumables like conical tubes, glass slide etc.
HOEFER | SKU:
SKU:ST-ATL03-FL
现货
无法加载取货服务可用情况
The Smart TubeLaser series is designed for permanent, high-contrast laser marking of Hoefer editable tubes, normal cryogenic tubes and other laboratory consumables like conical tubes, glass slide etc. Engineered for biotech, biobanking, pharmaceutical, and clinical laboratory environments, the system delivers fast, reliable, and maintenance-friendly sample identification for long-term traceability.
Available in Fiber Laser and UV Laser configurations, the Smart Tube Laser offers flexible marking solutions tailored to different material compatibility and application requirements.
Features
- Laser Engraving: Utilizes advanced laser technology to deliver high-quality, precise markings.

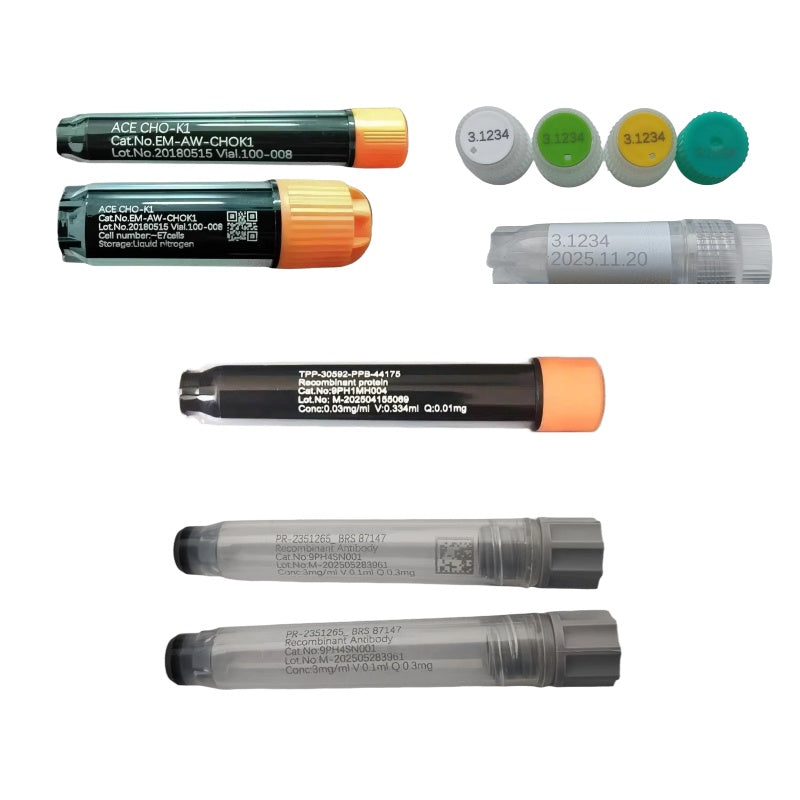

- Customizable Content: Offers flexibility to engrave characters, numbers, letters, barcodes, QR codes, graphics, and more.
- Permanent Marking: Provides scratch-resistant, low-temperature-resistant, and durable markings, eliminating the risks of peeling, damage, or loss.
- Desktop Design: Compact and highly integrated, making it ideal for small-scale cryovials and shipment vials in laboratory settings.

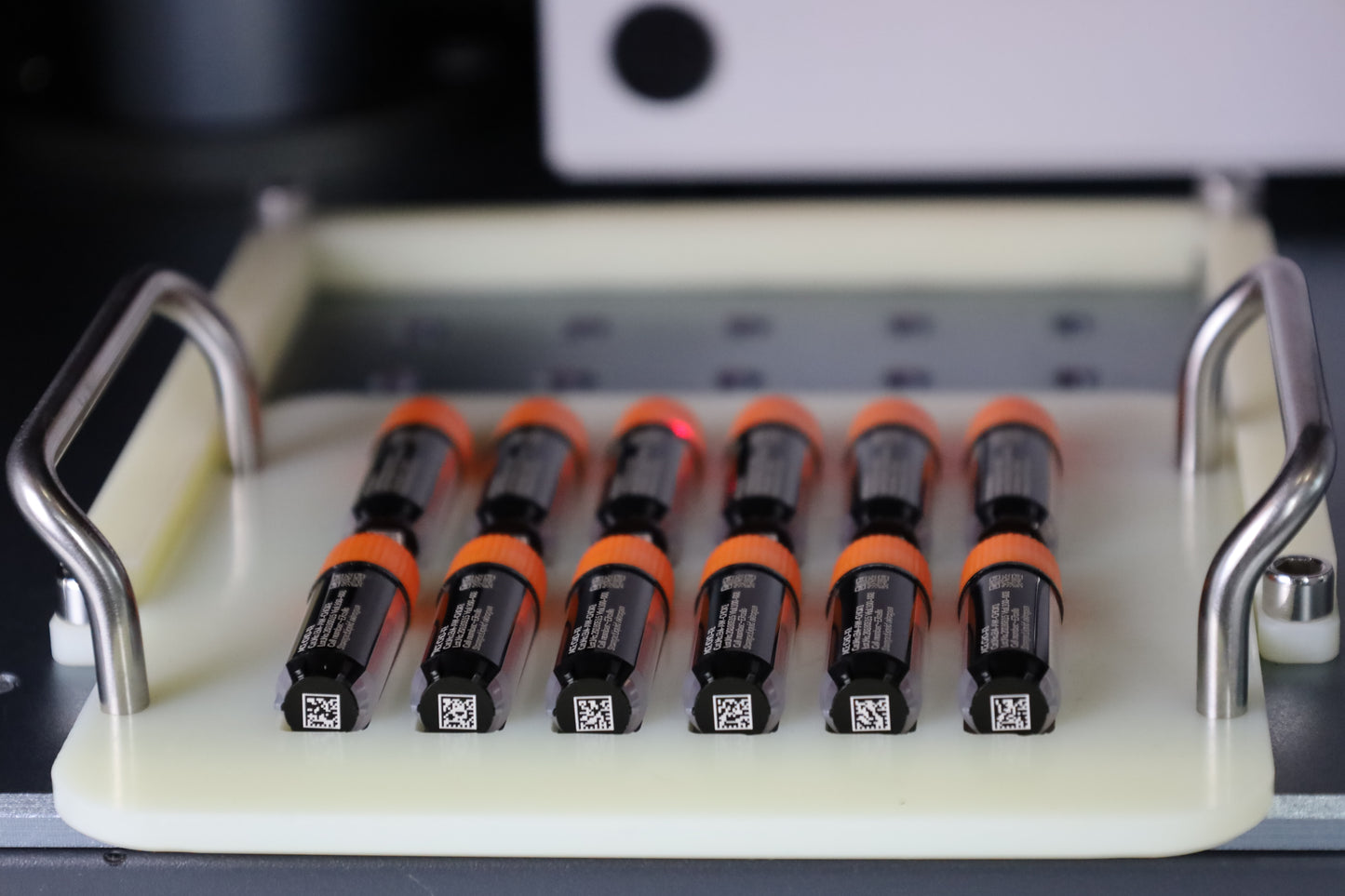

- Rapid Engraving: Capable of engraving 12 cryotubes in under 10 seconds.
- Differentiated Information Etching: Supports the engraving of both individual and batch-specific information on cryotubes.
- Open Communication Interface: Integrates seamlessly with existing software systems and supports the import of external data.

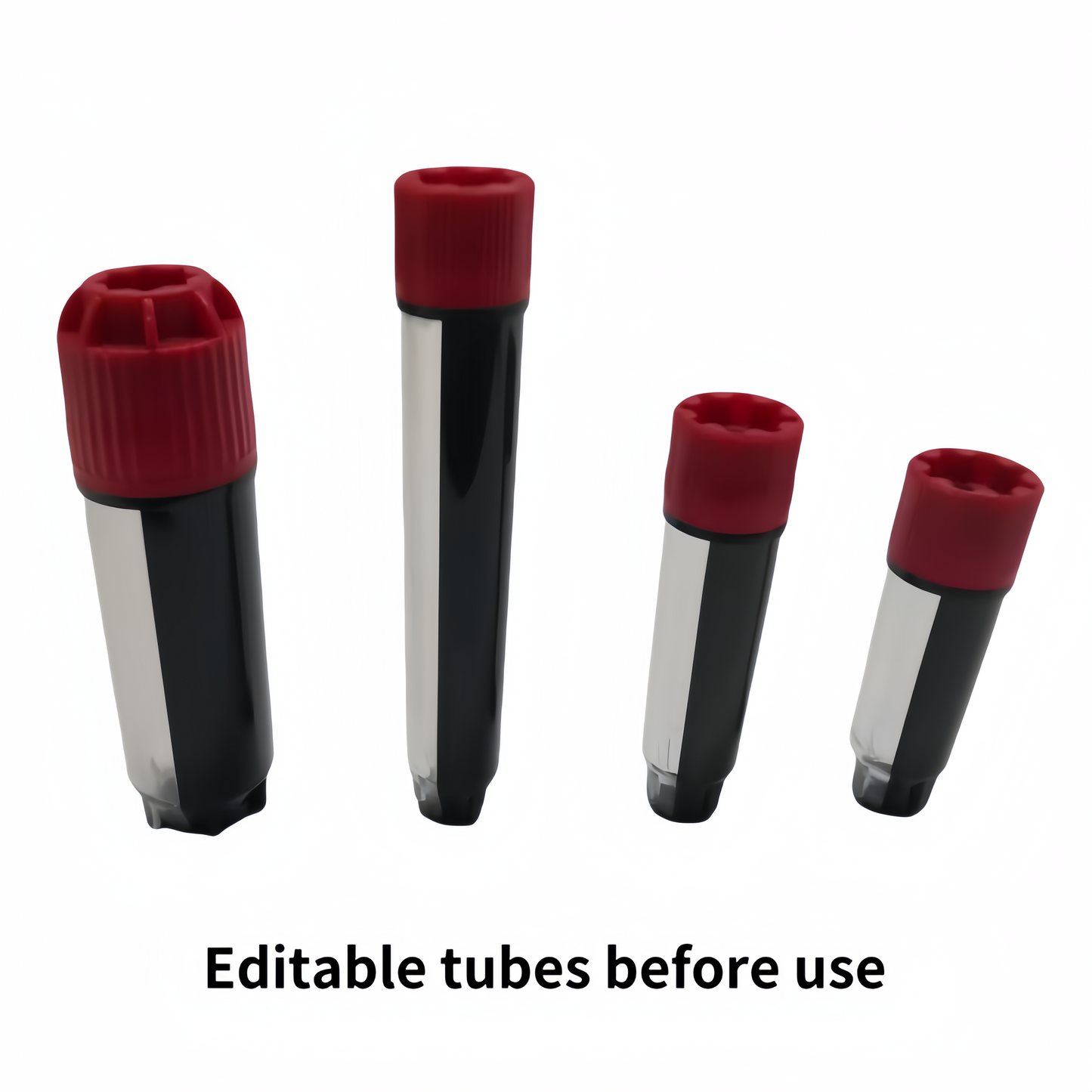

- Compatibility: Fully compatible with Hoefer's extensive range of editable tubes in various specifications.
Flexible Laser Options for Different Laboratory Needs
|
Feature |
Fiber Laser |
UV Laser |
|
Optimized For |
Hoefer & LVL dual-injection editable cryogenic tubes |
Broad laboratory consumable compatibility |
|
Black Coding Areas on Cryogenic Tubes |
Yes |
Yes |
|
White Coding Areas on Cryogenic Tubes |
No |
Yes |
|
Cryogenic Tube Caps |
No |
Yes |
|
Microscope Slides |
No |
Yes |
|
Multiwell Plates |
No |
Yes |
|
Glass Vials & Bottles |
No |
Yes |
|
Holder Included |
1 Standard Holder |
1 Holder Included |
|
Custom Holder Options |
Standard |
Available |
Video
Technical Parameters
| ST-ATL03-FL | ST-ATL03-UV | ||
| Dimensions | W×L×H | 340 mm X 420 mm X 620 mm | 535 mm X 340 mm X 600 mm |
| Laser parameters | Laser | Fiber Laser | Ultraviolet Laser |
| Laser Wavelength | 1064nm | 355nm | |
| Nominal Average Output Power | 20W | 5W | |
| Positioning Speed | F=160mm, ≤7000mm/s | 5000mm/s | |
| Optical Output Characteristics | Focus Lens | F=160 mm Standard | F=290 mm |
| Marking Area | 110 mm ×110 mm | 200 mm ×190 mm | |
| Standard marking line width | 0.06mm (depending on material) | 0.01-0.04mm | |
| Minimum Character Height | 0.2mm | 0.03mm | |
| Cooling System | Cooling method | Air Cooling | Air Cooling |
| Operating Environment | Power Supply | 1KW/AC220V/50Hz | 1.5KW/AC220V/50Hz |
| Voltage fluctuation range ±5%; a stabilizer is required if the fluctuation exceeds this range. | |||
| Grounding | The grid ground wire complies with national standards | ||
| Ambient Temperature | 0~40°C | ||
| Ambient Humidity | 30%≤RH≤85% | ||
| Vibration | Foundation amplitude less than 50µm; vibration acceleration less than 0.05g. | ||
| Dust | less than 0.20mg/m3 | ||
| Oil Mist | Not allowed | ||
| Condensation | Not allowed | ||
