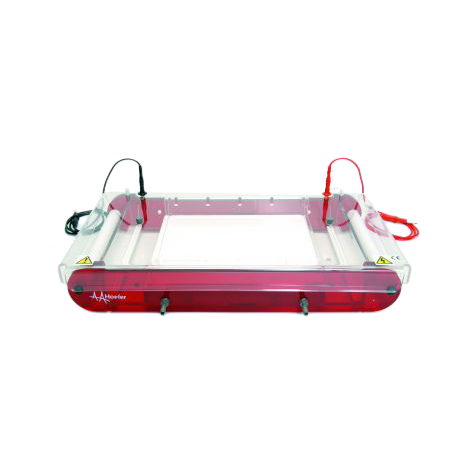

The SUB20 Maxi-Cooled Submarine Electrophoresis Unit provides a 20 x 20 cm gel-running tray with cooling tray and four comb positions which allows the user to perform high-resolution analytical and preparative studies of nucleic acids. Handles up to 168 samples.
Features & Benefits:
- Large format‐20 x 20 cm gel tray is ideal for high resolution techniques
- Multichannel pipette compatible combs—with a maximum 40 sample throughput reduce gel loading time
- Color-coded and height adjustable combs—easily identify comb thickness at a glance and control well depth
- Buffer recirculation ports—may be connected to a peristaltic pump for buffer recirculation during electrophoresis to maintain buffer pH and prevent ionic gradient formation
- Colored loading strips—for easy well detection when loading
- UV-transparent running tray—allows the user to image the gel without risk of damage due to handling
- Side handles—for safe and easy transportation around the laboratory
Includes:
- Buffer Chamber Assembly with Cooling Ports
- Safety Lid
- High Voltage Leads
- Running Tray with Casting Gates
- 1 mm thick, 16 well combs, 2 pcs
- Colored Loading Strips
- Buffer Recirculation Ports, 2 pcs
* The included casting gates conveniently and efficiently seal the running tray without the hassles of using tape.
Specifications:
| Gel Dimensions (W x L) | 20 x 20 cm |
| Maximum Buffer Volume | 2.2 L |
| Maximum Power Settings | 1000 V, 500 mA, 500 W |
| Maximum Sample Capacity | 160 |
| Maximum Running Temperature | 45°C |
| Indoor Use | 4 to 40°C |
| Humidity | Up to 80% |
| Unit Dimensions (W x L x H) | 27 x 47.5 x 8 cm |
