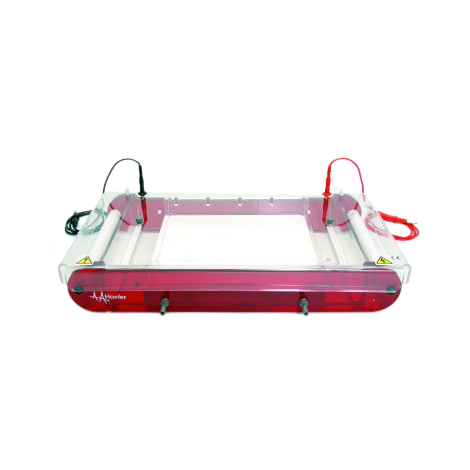

The SUB25 Maxi-Plus Cooled Submarine Electrophoresis Unit is ideal for high throughput screening of nucleic acids, particularly PCR products and in genotyping studies. It has a 25 x 30 cm gel-running tray with a cooling tray and 12 comb positions accommodating a maximum throughput of 624 samples.
Features & Benefits:
- Large format—25 x 30 cm gel tray is ideal for high throughput techniques
- Multichannel pipette compatible combs—with a maximum 52 sample throughputreduce gel loading time
- Color-coded and height adjustable combs—easily identify comb thickness at a glance and control well depth
- Buffer recirculation ports—may be connected to a peristaltic pump for buffer recirculation during electrophoresis to maintain buffer pH and prevent ionic gradient formation
- Colored loading strips—for easy well detection when loading
- UV-transparent running tray—allows the user to image the gel without risk of damage due to handling
- Side handles—for safe and easy transportation around the laboratory
Includes:
- Buffer Chamber Assembly with Cooling Ports
- Safety Lid
- High Voltage Leads
- Running Tray w/Casting Gates
- 1 mm thick, 26 well combs, 6 pcs
- Colored Loading Strips
- Buffer Recirculation Ports, 2 pcs
Specifications:
| Gel Dimensions (W x L) | 25 x 30 cm |
| Maximum Buffer Volume | 3 L |
| Maximum Power Settings | 1000 V, 500 mA, 500 W |
| Maximum Sample Capacity | 624 |
| Maximum Running Temperature | 45°C |
| Indoor Use | 4 to 40°C |
| Humidity | Up to 80% |
| Unit Dimensions (W x L x H) | 35 x 56 x 9 cm |
| Unit Weight | 7.20 kg |
