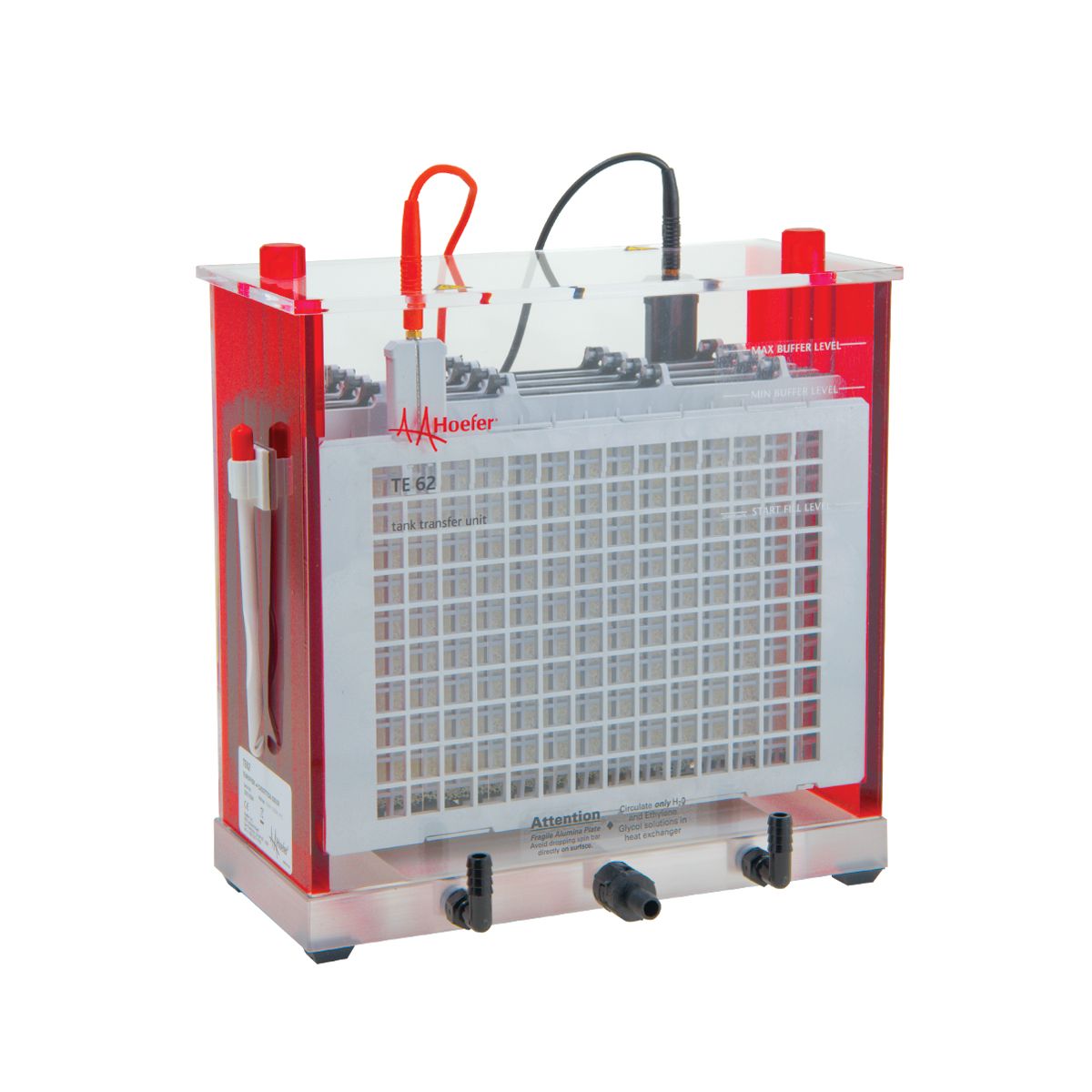

TE62 Standard Transfer Tank with Cooling Chamber

TE62 Standard Transfer Tank with Cooling Chamber

Quickly and evenly transfers proteins and nucleic acids from polyacrylamide or agarose gels onto nylon, nitrocellulose, or PVDF membranes while providing excellent temperature control

HOEFER | SKU:

SKU:TE62

常规价格 $1,710.00 USD
常规价格 促销价 $1,710.00 USD
促销 售罄

查看完整详细信息

TE62 Standard Transfer Tank with Cooling Chamber quickly and evenly transfers proteins and nucleic acids from polyacrylamide or agarose gels onto nylon, nitrocellulose, or PVDF membranes while providing excellent temperature control.

The TE62 is designed to accept up to four cassettes simultaneously with cooling. Each cassette holds a 15 x 21 cm gel, or as many as four 7 x 10 cm mini gels.

Features & Benefits:

  • Uniform and strong electric field—supports efficient and even transfers
  • Color-coded, easy to assemble cassettes—ensures proper orientation during transfer
  • Superior tank design allows the cassettes to apply equal pressure across the stack—prevents gel distortion
  • Built-in ceramic heat exchanger—provides excellent temperature control when used with an external cooling water bath

Includes:

  • Lower Chamber with Heat Exchanger
  • Safety Lid with High Voltage Leads
  • Electrode Panels, 2 pcs
  • Cassettes, 4 pcs
  • Foam Sponges, 6 mm thick, 4 pcs
  • Foam Sponges, 3 mm thick, 8 pcs
  • Cassette Hook
  • Blotter Paper (14.5 x 21.5 cm), 25 sheets

Specifications:

Capacity Up to four 15 x 21 cm gels
Up to sixteen 7 x 10 cm gels
Maximum Power Settings 100 V, 2 A, 200 W
Maximum Temperature 45°C
Indoor Use 4 to 40°C
Humidity Up to 80%
Unit Dimensions (W x H x D)  28 x 16.5 x 32 cm
Unit Weight 5.40 kg
