Features
- Manufactured in clean workshop complying with GMP 8 and certified with ISO 9001 and 13485
- Laser-etched code on the tube bottom and side,easy to be read, scratch resistant
- Strict quality control, Tri-Coded system, to provide readability and uniqueness, and unequaled sample audit traceability
- Super-toughened materials with standing temperatures from -196°C to 120°C for various storage condition
- RNase / DNase and pyrogen free, can be sterilized using gamma irradiation
- Same material for cap and tube, effectively prevent the uneven expansion during freeze-thaw cycles

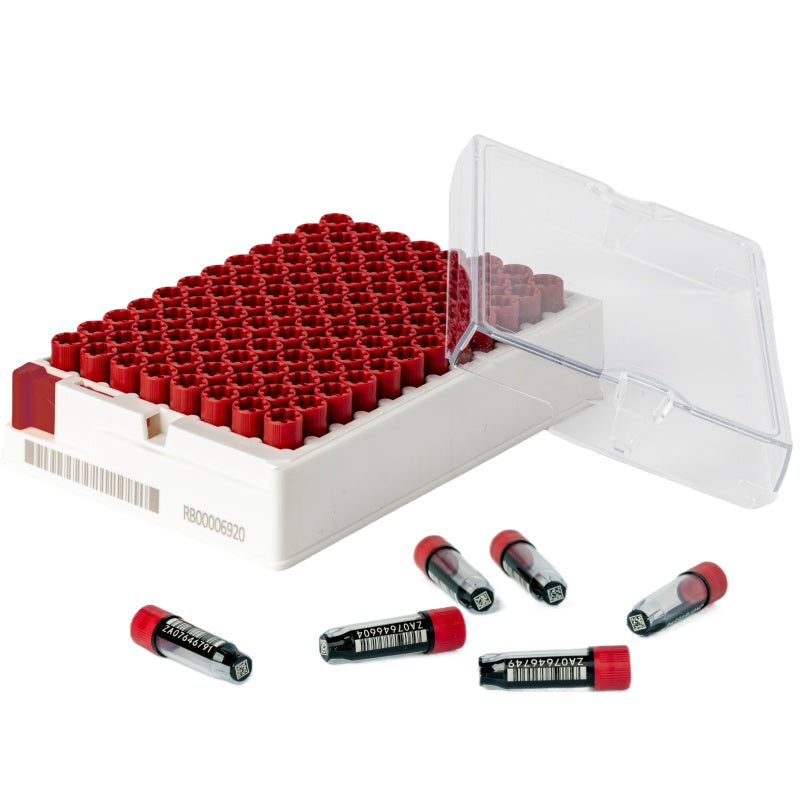

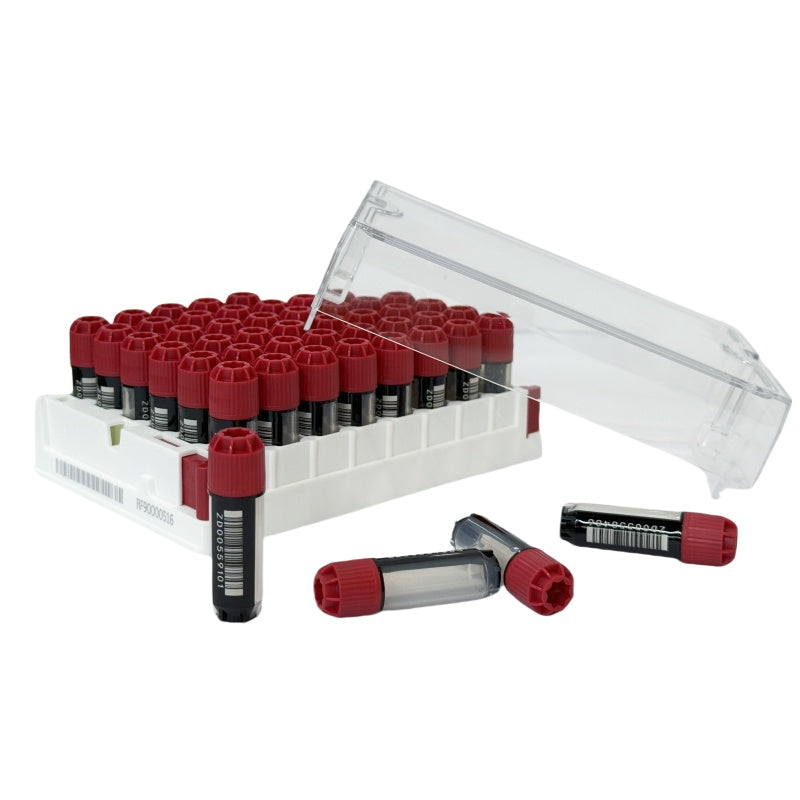

- Direct code-reading with the tubes on rack. The rack is SBS format
- External thread tubes provide bigger working volume
- Multi-color caps for choice, to facilitate research for different samples
- Non-silicone seal with unique thread to prevent over-tightening
Multi-color caps and racks for customization.
- Caps Color: Red, Green, Blue, Orange, Transparent
- Tube Racks: White base, Black base
Specifications
| 0.5 mL | 1 mL | 2.0 mL | |
| Max. Working Volume (mL) | 0.58 | 1.15 | 2 |
| Tube Height (mm) | 26.82 | 46.59 | 38.43 |
| Tube Height with Cap (mm) | 29.58 | 49.34 | 43.12 |
| Inner Diameter (mm) | 6.5 | 6.5 | 9.6 |
| Outer Diameter with Cap (mm) | 8.7 | 8.7 | 12.8 |
| Center to Center (mm) | 9 | 9 | 13.5 |
| Minimum temperature (℃) | -196 | -196 | -196 |
| Format | 96-format | 96-format | 48-format |
| 2D-code on base | √ | √ | √ |
| 1D Linear Barcode on side | √ | √ | √ |
| 1D Linear Barcode on rack | √ | √ | √ |
| Rack Dimensions (L×W×H,mm) | 128×85×36 | 128×85×54 | 128×85×48 |
| Rack Weight (kg) | 0.143 | 0.202 | 0.204 |
| Case Weight (kg) | 1.57 | 2.22 | 2.27 |
